Tesco Steel & Engineering manufactures ASTM A182 F321 socketweld flanges — the titanium-stabilised 304: UNS S32100, W.Nr. 1.4541 — to ASME B16.5 from ½″ to 3″ NB in Classes 150–1500. This is the refinery's hot stainless: titanium ties carbon up as harmless carbide, so the weld zone keeps its corrosion resistance and the grade keeps full 515/205 MPa strength — serviceable straight through the 400–800 °C band where the L-grades give up their allowables and plain 304 sensitizes slowly in service. Heater-adjacent lines, hot bypasses, sulphur plant, exhaust and bellows duty — welded with no preheat, no PWHT, and 347 filler (titanium doesn't survive the arc; niobium does). The stabilised family: F347 is the niobium sibling, F316Ti the molybdenum cousin; certified creep duty names F321H; chlorides belong to 316L and the duplex family. Facings: SWRF, SWFF, SWRTJ. Every lot with EN 10204 3.1/3.2 MTC. ISO 9001:2015, made in Mumbai, India — exported to 50+ countries.
A182 F321 · UNS S32100 · W.Nr. 1.4541Titanium-Stabilised — Ti ≥5×(C+N)The Refinery's Hot StainlessFull Strength Through 400–800 °CNo Preheat — No PWHT · 347 Filler515 / 205 MPa · 30% ElongationASME B16.5 ½″–3″ · Class 150–1500EN 10204 3.1 / 3.2 · ISO 9001:2015

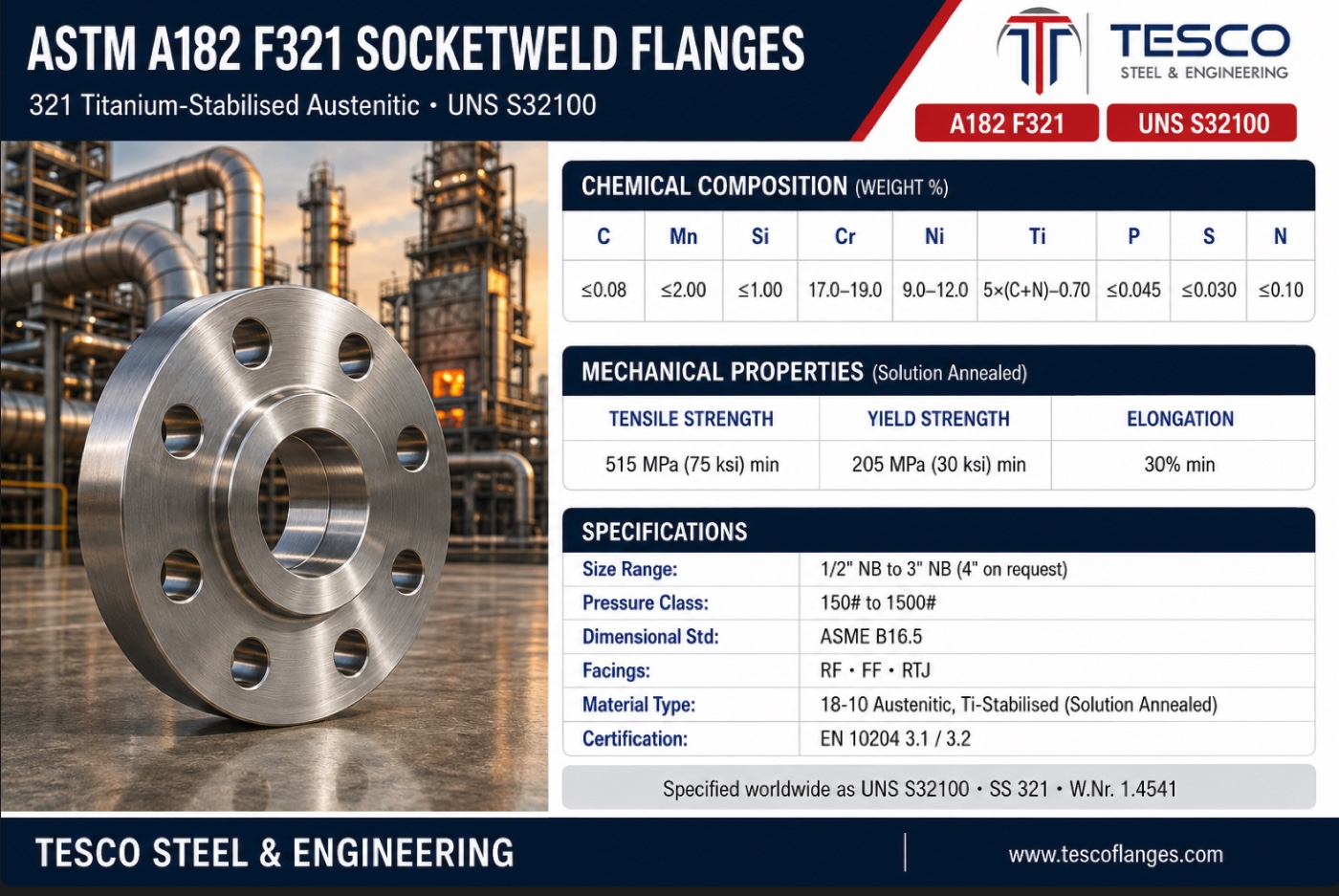

ASTM A182 F321 Socketweld Flanges — Specifications at a Glance
What is an ASTM A182 F321 Socketweld Flange?
The refinery's hot stainless in the small-bore pattern. A forged titanium-stabilised austenitic flange (ASTM A182 F321 / UNS S32100 / W.Nr. 1.4541) with a machined socket: pipe seated square by geometry, one external fillet weld with 347 filler — no preheat, no PWHT — through-bore matched to the pipe schedule. Ti ≥5×(C+N) locks carbon up before chromium can, so the weld zone cannot sensitize — while the grade keeps full plain-grade strength: tensile ≥515 MPa, yield ≥205 MPa, elongation ≥30%, held through the 400–800 °C band. Sized by ASME B16.5 at ½″–3″ NB, Classes 150–1500; EN 10204 3.1 on every lot.
One strategy — chaperone the carbon instead of removing it — four deployments. The modern rival to all of them is the L-grade + dual-cert world, which wins cold service on price; the stabilised grades' unanswerable case is heat.
What the Titanium Buys
Weld Immunity at Full Strength
304L pays 30/35 MPa for its weld immunity; 321 keeps the full 515/205 because the carbon stays — locked up as titanium carbide, harmless to the grain boundaries.
Protection That Survives Service
The L-grades protect the weld during fabrication; 321's titanium keeps protecting through years of hot operation — the reason refinery classes name it for lines that live in the sensitizing band.
Allowables That Hold at Heat
Design-code allowable stresses for 321 run strong through 400–800 °C — where the carbon-stripped L-grades fall away and plain 304 gambles its grain boundaries.
The Economical Stabilised Grade
Titanium is cheaper than niobium, and 304 base is cheaper than 316 — 321 is the stabilised family's volume grade, and our stock reflects it.
ASTM A182 F321 Chemical Composition (UNS S32100)
Element
C
Mn
Si
Cr
Ni
Ti
P
S
N
Weight %
≤0.08
≤2.00
≤1.00
17.0–19.0
9.0–12.0
5×(C+N)–0.70
≤0.045
≤0.030
≤0.10
The gentle rebalance against 304: chromium eases a point to 17–19, nickel rises a point to 9–12, making room for the titanium. The nitrogen cap matters: nitrogen consumes titanium as nitride before it can do its carbide work, so the stabiliser formula counts it — Ti ≥5×(C+N), verified per heat. No molybdenum: chloride credentials are 304's. PMI on every piece.
Mechanical Properties (Solution Annealed)
Property
ASTM A182 F321 Requirement
Tensile Strength
≥ 515 MPa (75 ksi) — the full plain-grade number, kept
Yield Strength (0.2%)
≥ 205 MPa (30 ksi) — where 304L drops to 170, the stabilised grade holds
Elongation
≥ 30% — the austenitic signature
Condition
Solution annealed — stabilising anneal available for aggressive service
Temperature Span
Cryogenic (no transition) through the 400–800 °C franchise band; ~850 °C scaling limit in air — beyond, F310
Creep Escalation
Code-certified creep with carbon floor & grain size → F321H by name
ASTM A182 F321 Socketweld Flanges are available in the following specifications:
Material Grade
ASTM A182 F321 (UNS S32100), W.Nr. 1.4541 — F321H by name where the code requires the carbon floor
Heat Treatment
Solution annealed — furnace records certified; stabilising anneal for aggressive service on request
Size
1/2"NB to 3"NB per ASME B16.5; 4″ and larger to order; EN 1092-1 patterns to order
Class
150#, 300#, 600#, 900#, 1500# (900# shares 1500# dimensions in most sizes) — hot hydrocarbon duty spreads into 300/600
Facings
Raised Face (SWRF), Flat Face (SWFF), Ring Type Joint (SWRTJ) with groove per B16.20
Bore
Socket bore to pipe OD; through-bore matched to pipe schedule (Sch 40S/80S common in hot service)
Welding
Single external fillet with 1/16″ expansion gap; 347 filler (titanium doesn't survive the arc — niobium does); no preheat, no PWHT
Service Span
Hot welded stainless small bore, 400–800 °C franchise; cryogenic-capable; chloride credentials are 304's — honest notes below
Surface Finish
Pickled or natural machined — stainless-dedicated handling, no carbon-steel contact
Testing
Tension & chemistry per heat; Ti-to-(C+N) ratio verified; PMI on every piece; socket depth and bore gauged
Certification
EN 10204 3.1 with solution-anneal records (standard) / 3.2 witnessed
Specification Notes — Getting 321 Sockets Right
Four honest notes.Cold service doesn't need it: ambient welded corrosion duty is the L-grades' territory on price — 321's case is heat; specify it where the line lives hot, not by reputation. The chloride credentials are 304's: no molybdenum, PREN in the high teens, austenitic SCC unchanged — chloride duty belongs to 316L and the duplex family, however hot-famous the grade. H-lines need H-metal: an F321H specification requires the certified carbon floor and grain size — plain F321 stock does not satisfy it; order it by name. And the filler is 347: titanium burns off in the arc — matching-321 filler cannot deliver a stabilised deposit; niobium-bearing 347 consumables are worldwide standard practice, stated in our WPS guidance with every supply.
How Our A182 F321 Socketweld Flanges Are Manufactured
1
Forging — cut billet of the spectro-verified S32100 heat — titanium-to-(C+N) ratio confirmed — is hot-forged into the flange blank with full heat traceability and segregated stainless handling.
2
Solution annealing — sets the clean austenitic structure with titanium carbides distributed; furnace charts retained against the heat number; stabilising anneal added where ordered.
3
Machining — faces, OD and drilling to ASME B16.5 on stainless-dedicated stations — titanium carbides are mildly abrasive: sharp inserts and disciplined feeds; socket counterbore and depth gauged piece by piece, through-bore matched to the ordered schedule.
4
Facing — RF serrations, flat face or RTJ groove per B16.20.
5
Testing & marking — tension and chemistry per heat; PMI on every piece; laser-marked with grade, size, class, schedule and heat number.
6
Certification & packing — EN 10204 3.1 MTC with solution-anneal records (3.2 witnessed on request); packed sea-worthy with no carbon-steel contact.
Where ASTM A182 F321 Socketweld Flanges Are Used
Wherever welded stainless small bore lives hot: refinery heater-adjacent piping and hot bypasses, sulphur recovery units, catalytic unit trim and instrument taps, hot vent and flare small bore, exhaust and expansion-bellows hardware, gas-turbine and diesel exhaust systems, and hot clean-process ducting connections. Production below:
Stainless Socket Weld Flange — Socket Bore Visible, Our WorksSocket Weld Flanges — Machined Batch, Ready for DispatchThe Socket Weld Joint — Note the Expansion Gap (X)
A182 F321 Socketweld Flange Dimensions
Socket weld flange dimensions are class-governed per ASME B16.5 — identical across material grades (pressure-temperature ratings follow the austenitic group and derate with temperature). Full charts:
How to Specify & Order an A182 F321 Socketweld Flange
Six elements — the design temperature belongs on every hot-service enquiry:
1
Size & standard — e.g. 1″ NB ASME B16.5, or DN25 EN 1092-1 to order.
2
Pressure class & facing — 150#–1500#; SWRF (the default), SWFF or SWRTJ with ring number — with the design temperature, which governs the rating and the gasket guidance.
3
Pipe schedule — Sch 40S or 80S common in hot service: the through-bore is matched to the pipe ID.
4
Grade line as written — F321, or F321H by name where the code requires the certified carbon floor and grain size.
5
Certification — EN 10204 3.1 with solution-anneal records (our standard) / 3.2 witnessed, PMI as applicable.
An ASTM A182 F321 socketweld flange is a forged titanium-stabilised austenitic stainless steel flange — 304-family chemistry with a deliberate titanium addition, UNS S32100, W.Nr. 1.4541 — whose back carries a machined socket: the pipe end seats inside, self-aligned square to the face, and is secured with a single external fillet weld. The titanium ties carbon up as harmless titanium carbide before chromium can, so the weld zone keeps its corrosion resistance while the grade keeps full plain-grade strength — and, crucially, stays serviceable through the hot intermediate band where the L-grades surrender their allowable stresses. Dimensioned to ASME B16.5 for ½" to 3" NB in Classes 150 to 1500 — the refinery's hot stainless, in the small-bore pattern.
What does the titanium in 321 actually do?
It gets to the carbon first. Weld sensitization happens when carbon finds chromium in the 450-850°C band and precipitates as chromium carbide, stripping the grain boundaries of the element that holds the passive film. Titanium forms its carbide more eagerly and at higher temperature than chromium does — so a dose of at least five times the combined carbon-plus-nitrogen content locks the carbon up as stable titanium carbide before the danger band is reached. The chromium stays in solution, the film stays intact, and the weld needs no protection. The L-grades solve the same problem by removing carbon; stabilisation solves it by chaperoning the carbon — keeping its strength and, just as importantly for this grade, keeping it available as creep resistance at service temperature.
Why is 321 the refinery's hot stainless?
Because its one talent is exactly the refinery's standing problem: welded stainless that must live hot. Refinery hot circuits — heater-adjacent lines, hot bypasses, sulphur plant, catalytic unit trim — run for years in and around the sensitizing band, where plain 304 slowly sensitizes in service and the L-grades' allowable stresses fall away. 321 refuses both failure modes at once: the titanium keeps the grain boundaries safe not just during welding but through years at temperature, and the full-carbon chemistry keeps design-code allowables strong through the 400-800°C band. Decades of refinery piping classes have therefore written 321 by reflex for hot stainless service — and its second life in aircraft exhausts, bellows and expansion-joint hardware follows the same logic: thin, hot, welded, cycled.
What is the chemical composition of ASTM A182 F321 (UNS S32100)?
Carbon ≤0.08%, manganese ≤2.00%, silicon ≤1.00%, chromium 17.0-19.0%, nickel 9.0-12.0%, titanium at least five times the combined carbon-plus-nitrogen content up to 0.70% maximum, nitrogen ≤0.10%, phosphorus ≤0.045%, sulphur ≤0.030%. Note the gentle rebalance against plain 304: chromium eases a point to 17-19 and nickel rises a point to 9-12, making room for the titanium; and note the nitrogen ceiling — nitrogen consumes titanium as titanium nitride before the titanium can do its carbide work, so the spec caps it and the stabiliser formula counts it. No molybdenum: 321 is a stabilised 304, and its chloride credentials are 304's. Chemistry is verified per heat, the titanium ratio checked, and everything travels on the EN 10204 3.1 MTC.
What are the mechanical properties of A182 F321 socketweld flanges?
In the solution-annealed condition A182 requires tensile strength 515 MPa (75 ksi) minimum, yield strength 205 MPa (30 ksi) minimum and elongation 30% minimum — the full plain-grade certificate, kept. That is the stabilised bargain restated: 304L buys weld immunity by dropping to 485/170; 321 gets the same immunity while keeping every megapascal, because the carbon stays in the metal, chaperoned rather than removed. The advantage compounds with temperature — design-code allowable stresses for 321 run strong through the intermediate hot band precisely because the carbon is still there — and where a code demands certified creep performance with a carbon floor, F321H exists for the purpose and has its own page on this site.
F321 or F304/304L — how do I decide?
Split the world by temperature. Cold and ambient welded corrosion duty belongs to the L-logic: dual-certified 304/304L is cheaper, cleaner and entirely sufficient when the metal will never dwell hot — the L-grade's weakness, reduced allowable stress at temperature, never gets tested. Hot welded duty belongs to 321: from roughly 400°C upward the L-grades' design allowables fall away and plain 304 risks sensitizing slowly in service, while 321 holds full strength with permanent grain-boundary protection. The crossover is the piping class's design temperature, and most refinery and hot-utility specs draw it explicitly: 304L below, 321 above. Where your spec names the grade, follow it; where you are choosing, state the design temperature on the enquiry and the answer falls out.
F321 or F347 — titanium or niobium?
Same strategy, different chaperone. 347 stabilises with niobium instead of titanium, and the differences are practical: niobium survives welding arcs where titanium burns off, so 347's weld deposits stay stabilised and matching 347 filler exists — one reason 347 is the filler of choice even for welding 321; niobium carbides resist dissolution slightly better right at the fusion line, giving 347 the edge where knife-line attack genuinely threatens; and 347's nuclear and high-pressure steam pedigree keeps it specified in those codes. 321 answers with economics and availability — titanium is cheaper than niobium, and 321 dominates the stabilised market's volume, especially in refinery service. Most specifications simply name one or the other; both socketweld pages live on this site, and we forge both.
F321 or F316Ti — the two titanium grades?
Molybdenum decides, exactly as it does for their parents. 321 is stabilised 304: no molybdenum, chloride credentials at the family baseline, its case built entirely on hot welded service — and priced accordingly. 316Ti is stabilised 316: the same titanium chaperone riding on a 2-3% molybdenum film, for duties that combine heat with genuine chloride or acid exposure — and it carries the European 1.4571 heritage besides, which often decides the matter by specification rather than chemistry. If the hot line's environment is combustion gas, steam, hydrocarbons or clean process, 321 is the economical answer; if chlorides or reducing acids ride along with the heat, 316Ti earns its premium. Both pages live in this series with the full stabilised-family story.
What is the temperature range of F321 socketweld flanges?
The intermediate hot band is the franchise: roughly 400-800°C, where three properties hold together — full-carbon allowable stresses that the L-grades cannot match, permanent grain-boundary protection that plain 304 cannot promise, and oxidation resistance adequate to about 850°C in continuous air service. Downward the austenitic structure keeps its toughness to cryogenic temperatures, though economics rarely send 321 there. Two boundaries deserve honesty: above roughly 850°C, scaling accelerates and the conversation moves to 310's 25-20 chemistry; and where a design code requires certified creep strength with a carbon floor and grain-size control, specify F321H by name — dual or plain 321 stock does not satisfy an H-grade line. State the design temperature and the code; the certificate follows.
What are 321's chloride limits — honestly?
They are 304's limits, unchanged. Titanium stabilisation protects grain boundaries from sensitization; it adds nothing to the passive film — no molybdenum, PREN in the high teens — so 321 pits in warm chloride water exactly as plain 304 does, and as an austenitic it keeps the family's vulnerability to chloride stress corrosion cracking above roughly 60°C. The classic trap is transplanting 321 from its hot clean world into chloride service on the strength of its reputation: a bleach line or brackish cooling circuit gains nothing from the titanium. The chloride ladder is its own thread — 316L, 317L, duplex, super duplex, each with a socketweld page — and 321 does not stand on it. State the environment alongside the temperature and the quotation points honestly.
How is an F321 socketweld flange welded — and why 347 filler?
With the austenitic family's easy rules and one famous consumable quirk. Geometry is standard: pipe bottomed in the socket, withdrawn 1/16" (1.6 mm) to leave the expansion gap, single external fillet weld. No preheat, no PWHT; stainless housekeeping and moderate heat input as always. The consumable: titanium burns off in the welding arc, so matching-321 filler cannot deliver a stabilised deposit — the standard practice worldwide is 347 filler, whose niobium survives the transfer and stabilises the weld metal by the same mechanism. 308L filler appears where specs accept the L-logic in the deposit. Knife-line attack — the stabilised family's narrow fusion-line footnote — is managed by weld sequencing and, in aggressive service, a stabilising anneal; in ordinary hot hydrocarbon duty it is a textbook note, not a field problem.
What facings are A182 F321 socketweld flanges made with?
All three, each with its own page on this site: raised face (SWRF) — the default — flat face (SWFF) for cast and lined equipment mates, and ring type joint (SWRTJ) for high-pressure duty. The hot-service note is the gasket: PTFE retires early, flexible graphite serves to roughly 450-500°C, and hotter joints move to mica-graphite or vermiculite systems with bolting alloy chosen to match — state the joint temperature on the enquiry and sealing guidance comes with the quotation. Stainless bolting deserves anti-galling attention as always: coated or dissimilar-grade fasteners and thread lubricant are standard practice. NPT-tapped variants are machined and certified at the works.
What sizes and pressure classes do F321 socketweld flanges come in?
ASME B16.5 standardises socket weld flanges from ½" to 3" NB in Classes 150, 300, 600, 900 and 1500 — Class 900 sharing Class 1500 dimensions in most small-bore sizes — with 4" and Class 2500 made to order. Refinery hot small bore spreads wider across the classes than utility stainless does — Classes 300 and 600 are common where hot hydrocarbon pressure ratings demand them, with the B16.5 austenitic tables derating steeply as temperature climbs. Put the pipe schedule on the enquiry — Sch 40S and 80S are commoner here than in cold stainless service — and state the design temperature, which sets the governing rating. Our quotations state the applicable rating per class.
What details are needed to get an accurate F321 socketweld flange quotation?
Six elements plus commercial terms: (1) size — ½" to 3" NB; (2) pressure class — 150 to 1500, with the design temperature, which governs the rating and the gasket guidance; (3) facing — SWRF, SWFF or SWRTJ with ring number; (4) the pipe schedule — Sch 40S and 80S are common in hot service, and the through-bore is matched to the pipe ID; (5) the grade line as written — F321, or F321H by name where the code requires the carbon floor and grain-size control; (6) certification — EN 10204 3.1 with solution-anneal records (our standard) or 3.2 witnessed, PMI as applicable. Add quantity and destination and we return price, weight and delivery — normally within 24 hours, with common sizes quoted from ready stock.
Who manufactures ASTM A182 F321 socketweld flanges in India?
Tesco Steel & Engineering is an ISO 9001:2015 certified flange manufacturer based in Mumbai, India, producing ASTM A182 F321 socket weld flanges from ½" to 3" NB (larger to order) in Classes 150-1500 — each forged from certified S32100 heats with the titanium-to-carbon ratio verified, solution annealed with furnace records, machined on stainless-dedicated stations with gauged socket depth and schedule-matched bore, PMI-checked and laser-marked with grade, size, class, schedule and heat number. Supplied with EN 10204 3.1/3.2 certification — F321H by name where the specification requires it — alongside the F347 sibling, the F316Ti cousin, the F304H creep thread and the full stainless socketweld range this series covers. Exported to more than 50 countries.
