Tesco Steel & Engineering manufactures ASTM A182 F316L socketweld flanges — both fixes in one grade: 2–3% molybdenum against chloride pitting, carbon capped at 0.030% so the weld cannot sensitize — UNS S31603, W.Nr. 1.4404 — to ASME B16.5 from ½″ to 3″ NB in Classes 150–1500. This is the grade most piping specs actually write: where corrosive small bore gets welded, the line item reads 316L — chemical plants, pharmaceutical sites (the ASME BPE metal), coastal utilities — with corrosion resistance that survives exactly as welded: no preheat, no PWHT, no caveats, and cryogenic toughness besides. The single-fix siblings tell their own stories — F316 (the molybdenum), F304L (the carbon) — and the honest limits hold: the L changes nothing the sea cares about; seawater and SCC escalate to the duplex and super duplex families. Facings: SWRF, SWFF, SWRTJ. Every lot with EN 10204 3.1/3.2 MTC; ASTM A262 testing on request. ISO 9001:2015, made in Mumbai, India — exported to 50+ countries.
A182 F316L · UNS S31603 · W.Nr. 1.4404Both Fixes — Mo + Low CarbonThe Grade Specs Actually WriteASME BPE Plant Standard MetalNo Preheat — No PWHT485 / 170 MPa · 30% ElongationASME B16.5 ½″–3″ · Class 150–1500EN 10204 3.1 / 3.2 · ISO 9001:2015

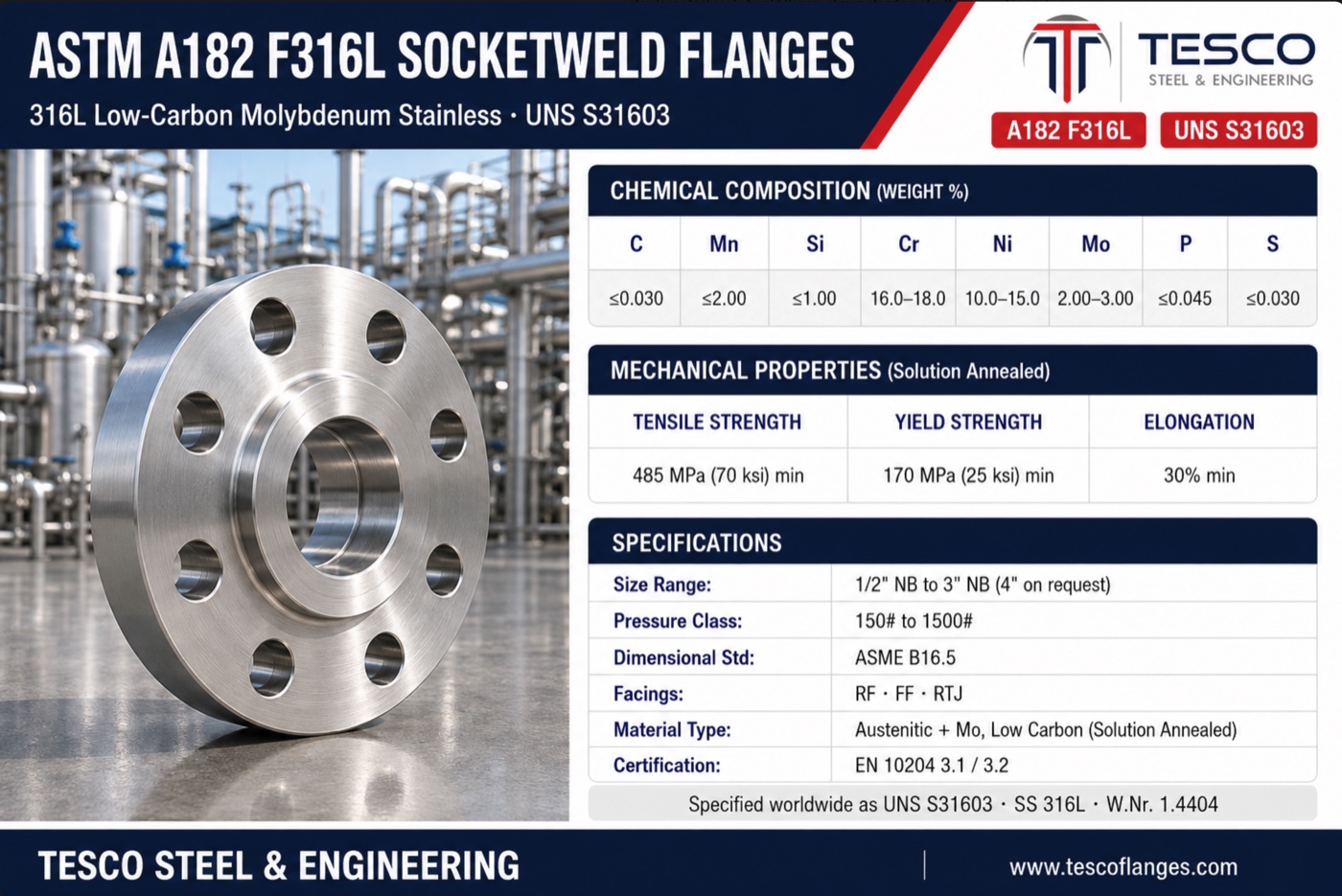

ASTM A182 F316L Socketweld Flanges — Specifications at a Glance
What is an ASTM A182 F316L Socketweld Flange?
The written grade of corrosive small bore, in the small-bore pattern. A forged low-carbon molybdenum austenitic flange (ASTM A182 F316L / UNS S31603) with a machined socket: pipe seated square by geometry, one external fillet weld with 316L filler — no preheat, no PWHT — through-bore matched to the pipe schedule. Mo 2.00–3.00% against chloride pitting (PREN ~24–26), C ≤0.030% so the weld zone cannot sensitize — corrosion resistance exactly as welded. Tensile ≥485 MPa, yield ≥170 MPa, elongation ≥30%, solution annealed, cryogenic-capable. Sized by ASME B16.5 at ½″–3″ NB, Classes 150–1500; EN 10204 3.1 on every lot, A262 testing on request.
A spec writer choosing plain 316 must footnote weld sensitization; choosing 304L gives up the molybdenum. 316L closes both doors in one line item — which is why most modern chemical, pharma and coastal piping classes write it and skip the alternatives.
What 316L Buys
No Footnotes on the Spec Sheet
Molybdenum for the film, low carbon for the weld — the two classic stainless interventions in one certificate, with nothing for the welding engineer to caveat.
The Bioprocess Metal
ASME BPE is written around 316L — pharmaceutical sites run it as the plant standard, and their utility small bore (clean steam, CIP, purified-water pretreatment) is this flange's home ground.
Welded Exactly As Certified
316L filler into a 316L flange — no preheat, no PWHT, no sensitization on repairs or multi-pass work; ASTM A262 testing rides on the certificate where the spec wants proof.
Cryogenic Toughness, Kept
No ductile-brittle transition — and where cryogenic plant meets salt air (coastal LNG terminals), 316L covers both ends of the problem at once.
ASTM A182 F316L Chemical Composition (UNS S31603)
Element
C
Mn
Si
Cr
Ni
Mo
P
S
Weight %
≤0.030
≤2.00
≤1.00
16.0–18.0
10.0–15.0
2.00–3.00
≤0.045
≤0.030
Note what the L changes and what it keeps: carbon drops to a third of plain 316's ceiling — the whole intervention — while the molybdenum stays: the L removes carbon, not corrosion resistance. The nickel band 10.0–15.0% is the A182 forging spec's own window, wider than plain F316's 10.0–14.0. PMI on every piece; dual 316/316L certification stated where the heat qualifies.
Mechanical Properties (Solution Annealed)
Property
ASTM A182 F316L Requirement
Tensile Strength
≥ 485 MPa (70 ksi)
Yield Strength (0.2%)
≥ 170 MPa (25 ksi) — the price of the L: carbon is also strength; the class tables absorb it in most small-bore duty
Elongation
≥ 30% — the austenitic signature: modest yield, enormous ductility
Condition
Solution annealed — single condition, no ageing metallurgy
Temperature Span
Cryogenic (no transition) to ~425 °C practical; hot sustained duty names plain F316 or F316H
Strength Escalation
Need plain-grade numbers with the L weld? Dual 316/316L delivers both; chloride + strength → the duplex family
ASTM A182 F316L Socketweld Flanges are available in the following specifications:
Material Grade
ASTM A182 F316L (UNS S31603), W.Nr. 1.4404 — F316L by name, or dual 316/316L where the specification accepts either
Heat Treatment
Solution annealed — furnace records certified
Size
1/2"NB to 3"NB per ASME B16.5; 4″ and larger to order; EN 1092-1 patterns to order
Class
150#, 300#, 600#, 900#, 1500# (900# shares 1500# dimensions in most sizes); 2500# on request — volume lives in 150/300
Facings
Raised Face (SWRF), Flat Face (SWFF), Ring Type Joint (SWRTJ) with groove per B16.20
Bore
Socket bore to pipe OD; through-bore matched to pipe schedule (Sch 10S/40S dominate stainless systems)
Welding
Single external fillet with 1/16″ expansion gap; 316L filler; no preheat, no PWHT; stainless-clean practice
Service Span
Cryogenic to ~425 °C practical; as-welded corrosive process with chloride exposure, pharma utility systems, coastal plants
Surface Finish
Pickled or natural machined — stainless-dedicated handling, no carbon-steel contact
Testing
Tension & chemistry per heat; PMI on every piece — molybdenum confirmed; ASTM A262 on request; socket depth and bore gauged
Certification
EN 10204 3.1 with solution-anneal records (standard) / 3.2 witnessed
Specification Notes — Getting 316L Sockets Right
Four honest notes.The L changes nothing the sea cares about: PREN stays ~24–26 — carbon appears nowhere in the pitting formula — so warm seawater crevice duty still escalates to F53/F55 super duplex, and chloride SCC above ~60 °C still points to the duplex family. The L has a price: 485/170 against plain 316's 515/205 — where a spec needs both numbers and the L weld, dual 316/316L delivers them on one certificate. Hygienic product lines still exclude sockets: even in the BPE world that names 316L, product-contact systems are orbitally butt-welded — 316L sockets serve the utility side. And no L heat can satisfy an H line: an F316H specification requires the carbon floor — order it by name from its own page.
How Our A182 F316L Socketweld Flanges Are Manufactured
1
Forging — cut billet of the spectro-verified low-carbon S31603 heat is hot-forged into the flange blank with full heat traceability and segregated stainless handling.
2
Solution annealing — the anneal-and-quench that dissolves any carbides and sets the clean austenitic structure; furnace charts retained against the heat number.
3
Machining — faces, OD and drilling to ASME B16.5 on stainless-dedicated stations — work-hardening respected with sharp tooling and positive feeds; socket counterbore and depth gauged piece by piece, through-bore matched to the ordered schedule.
4
Facing — RF serrations, flat face or RTJ groove per B16.20.
5
Testing & marking — tension and chemistry per heat; PMI on every piece with the molybdenum confirmed; ASTM A262 intergranular testing where ordered; laser-marked with grade, size, class, schedule and heat number.
6
Certification & packing — EN 10204 3.1 MTC with solution-anneal records, dual 316/316L stated where the heat qualifies (3.2 witnessed on request); packed sea-worthy with no carbon-steel contact.
Where ASTM A182 F316L Socketweld Flanges Are Used
Wherever corrosive small bore gets welded: chemical process piping and dosing lines in as-welded condition, pharmaceutical plant utilities (clean steam, CIP supply, purified-water pretreatment, solvent circuits — the site standard metal), coastal and marine-adjacent utilities, brackish cooling, effluent and water treatment, and coastal LNG-terminal small bore where cryogenic duty meets salt air. Production below:
Socket weld flange dimensions are class-governed per ASME B16.5 — identical across material grades (pressure-temperature ratings follow the austenitic group; see the nomenclature diagram above). Full charts:
How to Specify & Order an A182 F316L Socketweld Flange
Six elements — the schedule and the exact grade line both belong on the enquiry:
1
Size & standard — e.g. 1″ NB ASME B16.5, or DN25 EN 1092-1 Type 03.
2
Pressure class & facing — 150#–1500#; SWRF (the default), SWFF or SWRTJ with ring number.
3
Pipe schedule — Sch 10S, 40S or 80S: the through-bore is matched to the pipe ID.
4
Grade line as written — F316L by name where the specification demands it (BPE, A262-invoking or urea-adjacent lines), or dual 316/316L where either satisfies; A262 testing called out if required.
5
Certification — EN 10204 3.1 with solution-anneal records (our standard) / 3.2 witnessed, PMI as applicable.
An ASTM A182 F316L socketweld flange is a forged low-carbon molybdenum austenitic stainless steel flange — UNS S31603, W.Nr. 1.4404 — whose back carries a machined socket: the pipe end seats inside, self-aligned square to the face, and is secured with a single external fillet weld. The grade carries both of the stainless family's classic fixes at once: 2-3% molybdenum hardens the passive film against chloride pitting, and the 0.030% carbon ceiling means the fillet weld's heat-affected zone cannot sensitize — corrosion resistance that survives exactly as welded. Dimensioned to ASME B16.5 for ½" to 3" NB in Classes 150 to 1500, in raised face, flat face and ring joint facings — the default written grade of corrosive small bore worldwide.
Why is 316L the grade most piping specs actually write?
Because it needs no footnotes. A spec writer choosing plain 316 must add a caveat about weld sensitization; one choosing 304L gives up the molybdenum; 316L closes both doors in a single line item, and at modern mill economics the premium over either single-fix grade is small. The result is visible in almost every chemical, pharmaceutical and coastal plant specification of the last few decades: where corrosive small bore is welded — which is what a socket weld flange exists for — the written grade is 316L, full stop. Many piping classes skip plain 316 entirely. Our stock follows the specifications: 316L and dual-certified 316/316L material make up the deepest stainless shelf in our socket weld range.
What is the chemical composition of ASTM A182 F316L (UNS S31603)?
Carbon ≤0.030%, manganese ≤2.00%, silicon ≤1.00%, chromium 16.0-18.0%, nickel 10.0-15.0%, molybdenum 2.00-3.00%, phosphorus ≤0.045%, sulphur ≤0.030%. Note what the L changes and what it keeps: carbon drops to a third of plain 316's ceiling — that is the whole intervention — while the molybdenum stays at 2.00-3.00%, because the L removes carbon, not corrosion resistance. The nickel band is the forging spec's own nuance: A182 gives F316L a wider window, 10.0-15.0% against plain F316's 10.0-14.0%. Chemistry is verified per heat and travels on the EN 10204 3.1 MTC, with dual 316/316L certification stated where the heat qualifies.
What are the mechanical properties of A182 F316L socketweld flanges?
In the solution-annealed condition A182 requires tensile strength 485 MPa (70 ksi) minimum, yield strength 170 MPa (25 ksi) minimum and elongation 30% minimum — the same price of the L the 304 family pays: roughly 30 MPa of tensile and 35 MPa of yield surrendered against plain 316's 515/205, because carbon is also strength. For flanges the consequence is usually academic — B16.5 pressure-temperature class tables govern duty, and corrosive small bore rarely runs near them — and where a specification needs the plain grade's allowable stresses with the L-grade's weld, dual-certified 316/316L delivers both numbers on one certificate. Ductility and cryogenic toughness are the austenitic signature, unchanged.
F316L or F316 — and when must it be L by name?
For most welded corrosion duty, dual certification answers the question — material melted to L-grade carbon that still meets plain 316's strength, certifying as both and satisfying specs written either way; it is our routine supply. The lines that must be L by name are the aggressive ones: services invoking ASTM A262 intergranular testing, urea and nitric-adjacent chemistries where specifications call 316L UG or similar refinements, bioprocess systems specifying 316L per ASME BPE, and any order whose governing line simply reads F316L — a certificate reading only F316 does not satisfy it. The mirror trap: dual-certified stock can never satisfy an F316H hot line, whose carbon floor sits above the L ceiling. Name the exact grade line on the enquiry; the certificate will match it.
F316L or F304L — is the molybdenum worth it at low carbon?
The decision is the same molybdenum question the plain grades ask, transposed to as-welded duty. Both grades weld without sensitization; the difference is entirely the film. Chlorides in warm water, brackish cooling, coastal atmosphere, marine-adjacent service and dilute reducing acids argue for 316L's molybdenum; fresh water, food chemistry, clean process and dry atmosphere let 304L do the same as-welded job for less. In practice the market has drifted molybdenum-ward: many plants standardise on 316L across the board to simplify stores and eliminate mix-ups, accepting the premium as insurance. Both socketweld pages live on this site; describe the service and our quotation names the economical grade.
Does the low carbon change 316L's chloride resistance?
No — and keeping the two mechanisms separate prevents expensive confusion. Pitting resistance lives in chromium, molybdenum and nitrogen — PREN ≈ Cr + 3.3×Mo + 16×N — and carbon appears nowhere in that formula: 316L pits at essentially the same threshold as plain 316, around PREN 24-26. What the low carbon protects is the weld zone's grain boundaries against sensitization, a different attack with a different geography. So the honest limits of the 316 family carry over unchanged: warm seawater crevice duty still defeats it, chloride SCC above roughly 60°C still applies, and the socket's own gap is still a crevice. Where those limits bind, the escalation is structural — the duplex family — not a further carbon trim.
Is 316L the pharmaceutical grade?
Yes — 316L is the named metal of the bioprocess world: ASME BPE, the hygienic-design standard of pharmaceutical manufacturing, is written around it, and product-contact systems from WFI loops to bioreactors are 316L by default. The socket weld's place in that world needs stating carefully: hygienic product lines exclude socket joints — the socket gap traps product and defeats cleaning-in-place — and are orbitally butt-welded instead. Where 316L socket weld flanges belong is the rest of the same plant: clean steam and condensate, CIP supply, purified-water pretreatment, cooling and glycol circuits, solvent and reagent utilities — services that must match the site's 316L standard but are ordinary process piping. That division is exactly how pharmaceutical engineering firms specify, and our supply respects it.
Is 316L seawater-proof — honestly?
No — the L changes nothing the sea cares about. At a PREN of roughly 24-26, continuous immersion in warm seawater brings crevice attack under deposits, gaskets and socket gaps in the 15-25°C range, exactly as for plain 316. The grade's saltwater franchise is the coast, not the sea: spray zones, brackish cooling, marine atmosphere, wash-down. Genuine seawater lines belong to super duplex at PREN ≥40 — the F53 and F55 socketweld pages carry that story — or to copper-nickel and titanium by different mechanisms entirely. A socket weld joint in seawater service is doubly questioned: the pattern's own crevice plus the alloy's threshold. State the water on the enquiry and the quotation will point honestly.
Is F316L suitable for cryogenic service?
Yes — the austenitic structure has no ductile-brittle transition, so 316L keeps its toughness to liquid-nitrogen temperatures and beyond without impact-testing gymnastics. The L-grade is in fact the natural cryogenic stainless: cryogenic plants are welded fabrications full of small-bore vents and instrument connections, and low-carbon material welds without any metallurgical afterthought. 304/304L takes most of that duty on economics, but 316L appears wherever the cold plant sits in salt air — coastal LNG terminals being the standing example. Codes may require weld-procedure impact qualification for the joint; the base metal's capability is inherent and the solution-annealed condition is documented on the certificate.
How is an F316L socketweld flange welded?
With the family's easiest rules and no metallurgical afterthought. Pipe bottomed in the socket, withdrawn 1/16" (1.6 mm) to leave the expansion gap, single external fillet with 316L filler — the same designation as the base metal, which is no coincidence: 316L filler is the universal austenitic filler precisely because its low carbon protects every weld it touches. No preheat, no PWHT, no sensitization concern on multi-pass work or repairs. The discipline is stainless housekeeping — dedicated brushes and tooling, no carbon-steel contamination — and moderate heat input against distortion, austenitics expanding half again as much as carbon steel. Flanges arrive solution annealed with furnace records.
What facings are A182 F316L socketweld flanges made with?
All three, each with its own page on this site: raised face (SWRF) — the default, with PTFE or graphite spiral wound gaskets by service — flat face (SWFF) for GRP, lined and cast equipment mates, and ring type joint (SWRTJ) for the rarer high-pressure stainless duty, with soft iron or stainless rings per the class. Stainless bolting deserves anti-galling attention — stainless-on-stainless threads seize under torque, so coated or dissimilar-grade fasteners and thread lubricant are standard practice. NPT-tapped test and injection variants are machined and certified at the works.
What sizes and pressure classes do F316L socketweld flanges come in?
ASME B16.5 standardises socket weld flanges from ½" to 3" NB in Classes 150, 300, 600, 900 and 1500 — Class 900 sharing Class 1500 dimensions in most small-bore sizes — with 4" and Class 2500 made to order. As the most-written stainless grade, 316L carries our deepest socket weld stock, concentrated in Classes 150 and 300 where corrosive utility and process small bore lives. Put the pipe schedule on the enquiry — Sch 10S and 40S dominate stainless systems, and the through-bore is matched to the pipe ID so the joint presents no step to flow. B16.5 pressure-temperature ratings for the austenitic group govern the limits; our quotations state them per class.
What details are needed to get an accurate F316L socketweld flange quotation?
Six elements plus commercial terms: (1) size — ½" to 3" NB; (2) pressure class — 150 to 1500; (3) facing — SWRF, SWFF or SWRTJ with ring number; (4) the pipe schedule — Sch 10S, 40S or 80S, so the through-bore matches the pipe ID; (5) the grade line as written — F316L by name where the specification demands it (BPE, A262-invoking or urea-adjacent lines), or dual 316/316L where either satisfies, with A262 testing called out if required; (6) certification — EN 10204 3.1 with solution-anneal records (our standard) or 3.2 witnessed, PMI as applicable. Add quantity and destination and we return price, weight and delivery — normally within 24 hours, with common sizes quoted from ready stock.
Who manufactures ASTM A182 F316L socketweld flanges in India?
Tesco Steel & Engineering is an ISO 9001:2015 certified flange manufacturer based in Mumbai, India, producing ASTM A182 F316L socket weld flanges from ½" to 3" NB (larger to order) in Classes 150-1500 — each forged from certified low-carbon heats, solution annealed with furnace records, machined on stainless-dedicated stations with gauged socket depth and schedule-matched bore, PMI-checked — molybdenum confirmed on every piece — and laser-marked with grade, size, class, schedule and heat number. Supplied with EN 10204 3.1/3.2 certification — A262 intergranular testing on request, dual 316/316L stated where the heat qualifies — alongside the F316, F304/F304L, F317L and the duplex and super duplex socketweld range this series covers. Common sizes in ready stock; exported to more than 50 countries.
