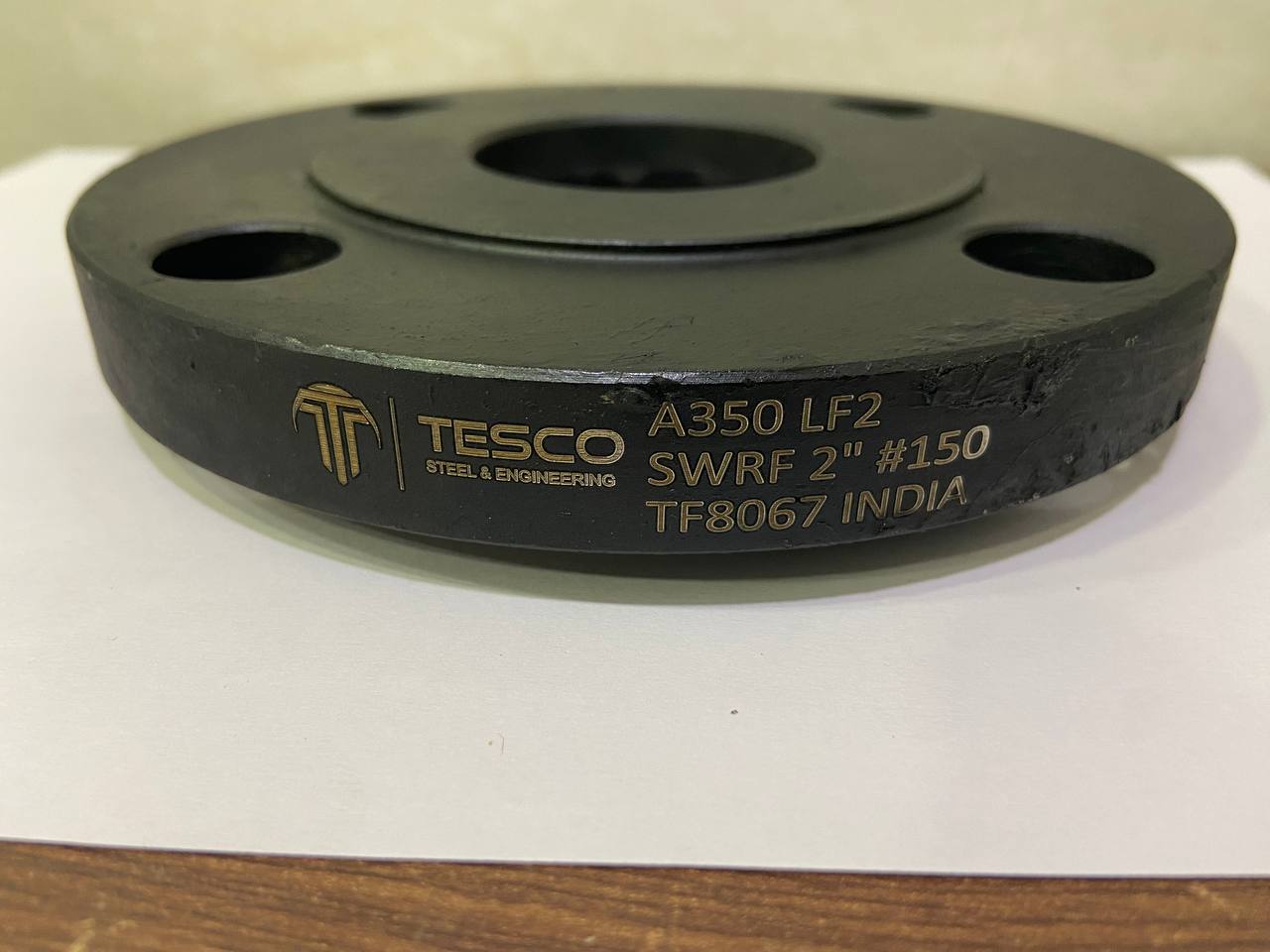

These ASTM A350 LF2 Socket Weld Flanges are counter bored to accept the pipe before being fillet welded. SA350 LF2 Socket welding flanges are typically used on smaller sizes of high pressure pipes. The pipe is inserted into the socket end of the LTCS socketweld flange and fillet weld is applied around the hub of the flange. The bore of the pipe and flange are both same therefore giving smooth flow characteristics. An optional internal weld may be applied in high stress applications. Tesco Steel & Engineering manufacture a wide range of high quality A350 LF2 SWRF Flanges in India. We offer these flanges in ASME/ANSI/DIN standards.
| C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Nb | V |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.30 max | 0.60-1.35 | 0.035 max | 0.040 max | 0.15-0.30 | 0.40 max | 0.30 max | 0.12 max | 0.40 max | 0.02 max | 0.08 max |
| Tensile Strength, MPa [ksi] | Yield Strength, Min, Mpa [ksi] | Elongation % min. | Reduction of Area % min. | Hardness HB max |
|---|---|---|---|---|
| 485-655 [70-95] | 250 [36] | 22 | 30 | 197 |
| ASTM A350 LF2 Socket Weld Flanges are available in the following specifications: | |
|---|---|
| Size | 1/2"NB to 56"NB |
| Class | 150#, 300#, 3000#, 6000#, 9000# |
| Sch (Schedule) | XS, XXS, STD & Schedule 20, 40, 80, 160 |
| Pressure Ratings | PN 1 - PN 400 |
| Other Services | Hot Dip Galvanized (GI) ASTM A350 LF2 Socket Weld Flanges Sand Blasting on ASTM A350 LF2 Socket Weld Flanges Shot Peening on ASTM A350 LF2 Socket Weld Flanges Epoxy Coating on ASTM A350 LF2 Socket Weld Flanges FBE Coating on ASTM A350 LF2 Socket Weld Flanges |
