Tesco Steel & Engineering forges ASTM A182 F321 blind flanges — UNS S32100 / EN 1.4541, titanium-stabilised 304 — to ASME B16.5 Class 150–2500 from ½″ to 24″ NB and to ASME B16.47 up to 60″. Other stainless grades pass through the 425–815°C sensitization band nervously; 321 lives there: titanium dosed at 5×(C+N) captures the carbon permanently, so exhaust headers, heater circuits and expansion systems can be welded and then work hot for years — at the full 515/205 MPa, no L-grade strength cut. The stabilised pair splits by one question: chlorides riding along? Then F316Ti brings the molybdenum. Code creep ratings: F321H or F304H. Temperature beyond stabilisation: F310. Facings: BLRF, BLFF or BLRTJ. Every lot with EN 10204 3.1/3.2 MTC. ISO 9001:2015, made in Mumbai, India — exported to 50+ countries.
ASTM A182 F321 · UNS S32100 · EN 1.4541Titanium-Stabilised 304Lives in the 425–815°C BandFull 515/205 StrengthF321H Creep Variant to OrderASME B16.5 ½″–24″ · Class 150–2500RF · FF · RTJ FacingsEN 10204 3.1 / 3.2 · ISO 9001:2015

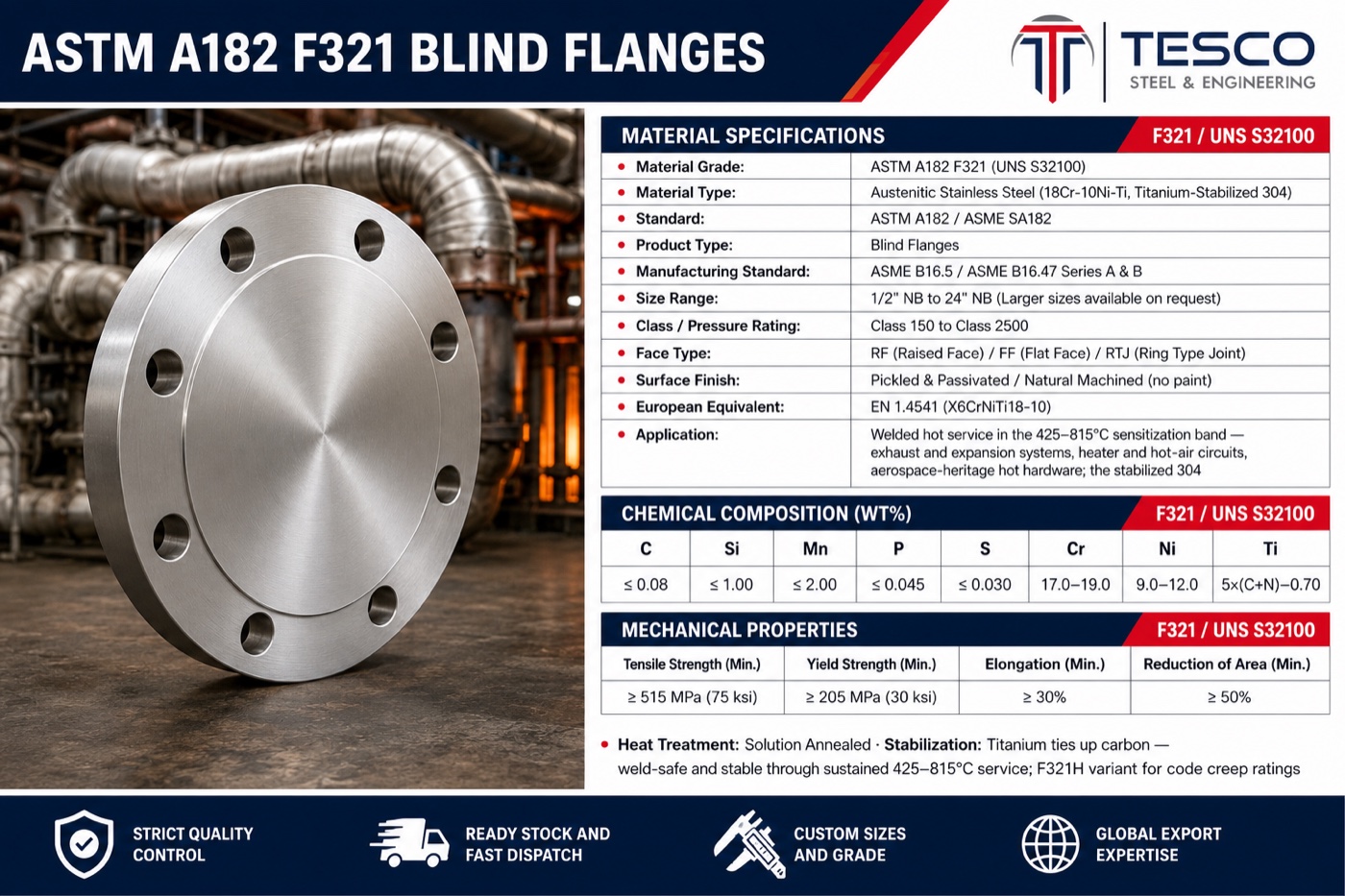

ASTM A182 F321 Blind Flanges — Specifications at a Glance
What is an ASTM A182 F321 Blind Flange?
The stainless that lives where others only visit. A solid forged disc of titanium-stabilised 304 (UNS S32100 / EN 1.4541) with no bore, closing pipes, ducts and nozzles in welded hot service: exhaust and expansion systems, heater and hot-air circuits, aerospace-heritage hardware. Titanium at 5×(C+N) captures the carbon permanently, so the steel can be welded and then sit inside the 425–815°C sensitization band for years — at the standard ≤0.08% carbon and the full 515/205 MPa. No molybdenum: this is the hot-duty grade, not the chloride grade. Dimensions per ASME B16.5 / B16.47 in RF, FF and RTJ facings; EN 10204 3.1 certified.
Also searched as: SS 321 blind flange, 1.4541 blind flange, X6CrNiTi18-10 blind, S32100 blind, stabilised 304 blind, 321H / F321H blind flange, SA-182 F321 blind (the ASME boiler-code twin) — all covered on this page. See also the stainless steel hub, its stabilised twin F316Ti, the base-family pages F304 / F304L / F304H, and the facing pages BLRF / BLFF / BLRTJ.
Built to Live in the Band, Not Pass Through It
Between 425 and 815°C, carbon in ordinary stainless slowly precipitates as chromium carbides, stripping grain boundaries of their protection. Most grades manage that band; 321 was built for it:
Low Carbon Thins the Threat — Titanium Removes It
An L grade survives the minutes of welding heat because there is little carbon to precipitate — but parked at 600°C for years, even ≤0.030% eventually finds its way out. Titanium carbides form first and hold forever: stabilisation is permanent, which is the entire difference between a grade that gets welded and a grade that works hot.
Full Strength Kept
Stabilisation costs nothing mechanically: 515/205 MPa minimums, standard rating lines, no dual-cert workaround — and the retained carbon plus fine titanium carbides give respectable hot strength, formalised in the F321H creep variant (S32109, C 0.04–0.10 enforced, Ti relaxed to 4×(C+N)).
The Aerospace Pedigree
321 earned its name in aircraft exhausts and hot airframe parts — decades of thermal-cycling service history that industrial exhaust, heater and expansion-joint specifications still trade on.
The Stabilised Pair — One Question Splits Them
Grade
Base
Molybdenum
Specify For
F321 (this page)
304 (18Cr-10Ni)
None
Hot oxidising duty — exhausts, heaters, hot air — at 304 cost
The 304 base windows with one addition: titanium as a formula, not a range — at least five times the combined carbon and nitrogen, capped at 0.70%. A certificate reading C 0.05%, N 0.04% needs Ti ≥ 5 × 0.09 = 0.45% — the one element verified by arithmetic, and our PMI reads it on every piece. Note what is absent: no molybdenum — the chloride question belongs to F316Ti.
Mechanical Properties & The Service Span
Property
ASTM A182 F321 Requirement
Tensile Strength
≥ 515 MPa (75 ksi) — full standard value, no L-grade penalty
Yield Strength (0.2%)
≥ 205 MPa (30 ksi)
Elongation
≥ 30%
Reduction of Area
≥ 50%
Hardness
No A182 limit — typically soft as annealed
Condition
Solution annealed — mandatory
Service Span
Cryogenic like any 304 at one end; sustained 425–815°C duty as home ground; scaling ~870–900°C; code creep design via F321H; beyond stabilisation — F310
ASTM A182 F321 Blind Flanges are available in the following specifications:
Material Grade
ASTM A182 F321 (UNS S32100); F321H (S32109) creep variant to order; EN 1.4541 / X6CrNiTi18-10 designation where required
Heat Treatment
Solution annealed — mandatory; condition stated on certificate
Size
1/2"NB to 24"NB per ASME B16.5; 26"–60" per ASME B16.47; EN 1092-1 to order
Class
150#, 300#, 400#, 600#, 900#, 1500#, 2500# — rated on the standard austenitic lines
Facings
Raised Face (BLRF), Flat Face (BLFF), Ring Type Joint (BLRTJ) with groove per B16.20
Service Span
Welded hot duty through the 425–815°C band; wet chloride duty belongs to the molybdenum grades — state the environment at enquiry
Surface Finish
Pickled & passivated or natural machined — no paint; segregated stainless handling throughout
Modifications
NPT-tapped centre (test / vent / instrument), lifting provisions — machined & certified at the works
Testing
Tension & chemistry per heat — titanium checked against the 5×(C+N) rule; PMI routine; IGC (A262) where specified
Certification
EN 10204 3.1 (standard) / 3.2 witnessed
Why F321 Blind Flanges Are Specified
The Service Itself Is Hot
Sensitization is a service-temperature phenomenon, not just a welding one. A closure that spends its life at 600°C needs carbon that can never precipitate — stabilisation, not low carbon, is the permanent answer.
Weld Safety at Full Strength
The L route pays 485/170; the Ti route keeps 515/205 and the standard rating lines. On hot systems that also cycle, the extra yield margin earns its keep in bolt-load behaviour.
Thermal-Cycling Pedigree
From aircraft exhausts to plant expansion joints: 321's service record is precisely the heat-up/cool-down duty that loosens joints and cracks lesser closures.
At 304 Cost
No molybdenum on the alloy bill — when the hot duty carries no chloride question, 321 delivers the stabilised certificate at the economical end of the stainless range.
Three details buyers miss.Verify titanium by arithmetic: the certificate must show Ti ≥ 5×(C+N) — a range check is not enough; we run the calculation on every heat. No molybdenum means no chloride upgrade: in wet salty service 321 is only as good as its 304 base — the chloride ladder (316L, 317L, duplex) starts elsewhere. Filler wire is chosen for you: titanium burns off across the arc, so 321 systems commonly weld with 347 (niobium) filler — worth knowing when the blind becomes a welded spool at the next revamp; and mirror-polish applications should note the faint titanium-carbide stringers and prefer the L grades.
How Our F321 Blind Flanges Are Manufactured
1
Forging — cut billet of the spectro-verified S32100 heat — titanium confirmed against the 5×(C+N) rule — is hot-forged into the solid disc blank with full heat traceability and segregated stainless handling.
2
Solution anneal — restoring the uniform austenite while the titanium carbides keep the carbon captured; furnace charts retained against the heat number.
3
Machining & facing — faces, OD and drilling to ASME B16.5 / B16.47; RF serrations, flat face or RTJ groove gauged per B16.20; NPT taps machined where ordered.
4
Testing — tension test and chemistry against the heat; PMI on every piece reads the titanium; intergranular-corrosion (ASTM A262) and other tests where specified.
5
Pickling & passivation — the clean paint-free chromium-oxide skin, with marking of standard, grade (H suffix where applicable), size, class and heat number.
6
Certification & packing — EN 10204 3.1 MTC (3.2 witnessed on request); faces protected, palletised or crated sea-worthy — no carbon-steel contact in transit.
Where F321 Blind Flanges Are Used
Wherever welded stainless works hot: engine and turbine exhaust systems, expansion joints and bellows assemblies, fired-heater and hot-air circuits, thermal oxidiser trains, jacketed reactors and hot-oil systems, refinery stabilised line classes, aerospace-heritage hardware. Production below:

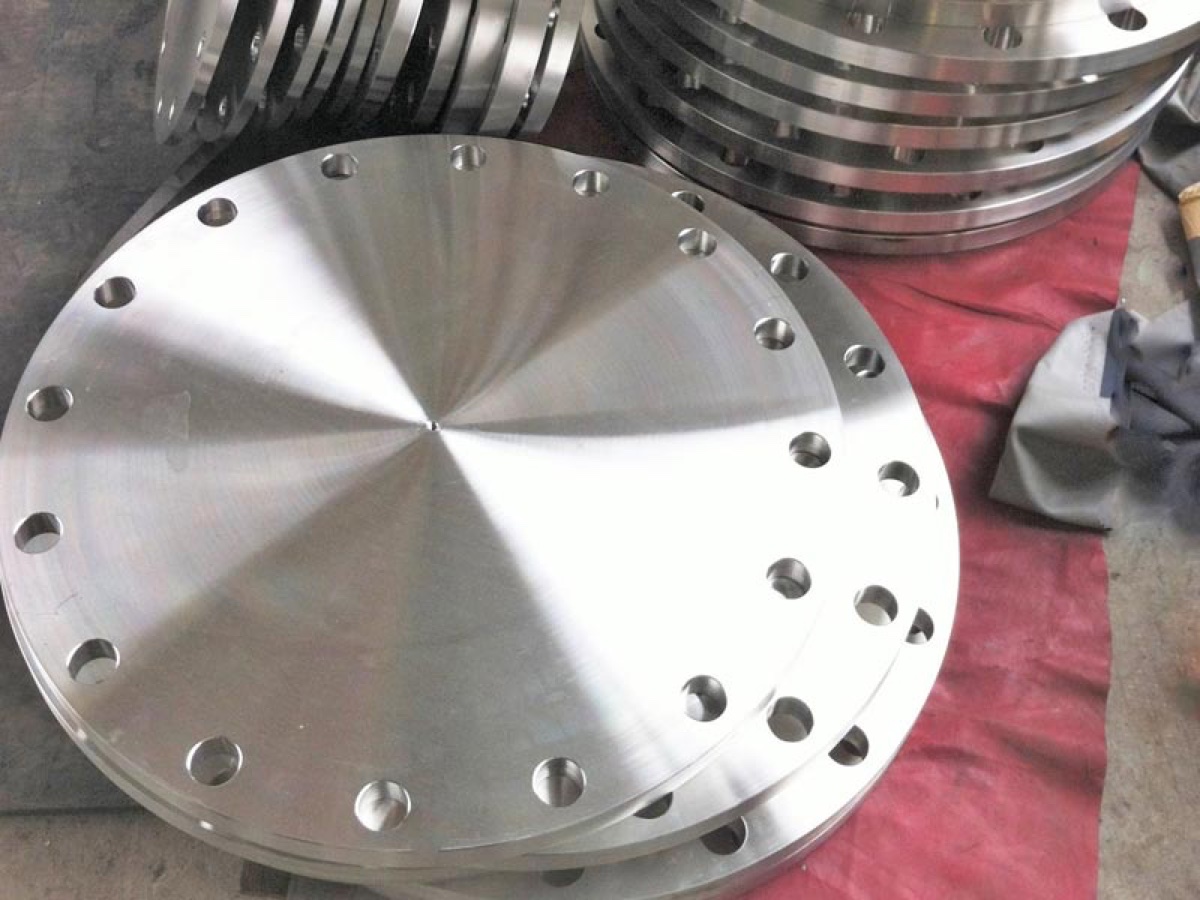

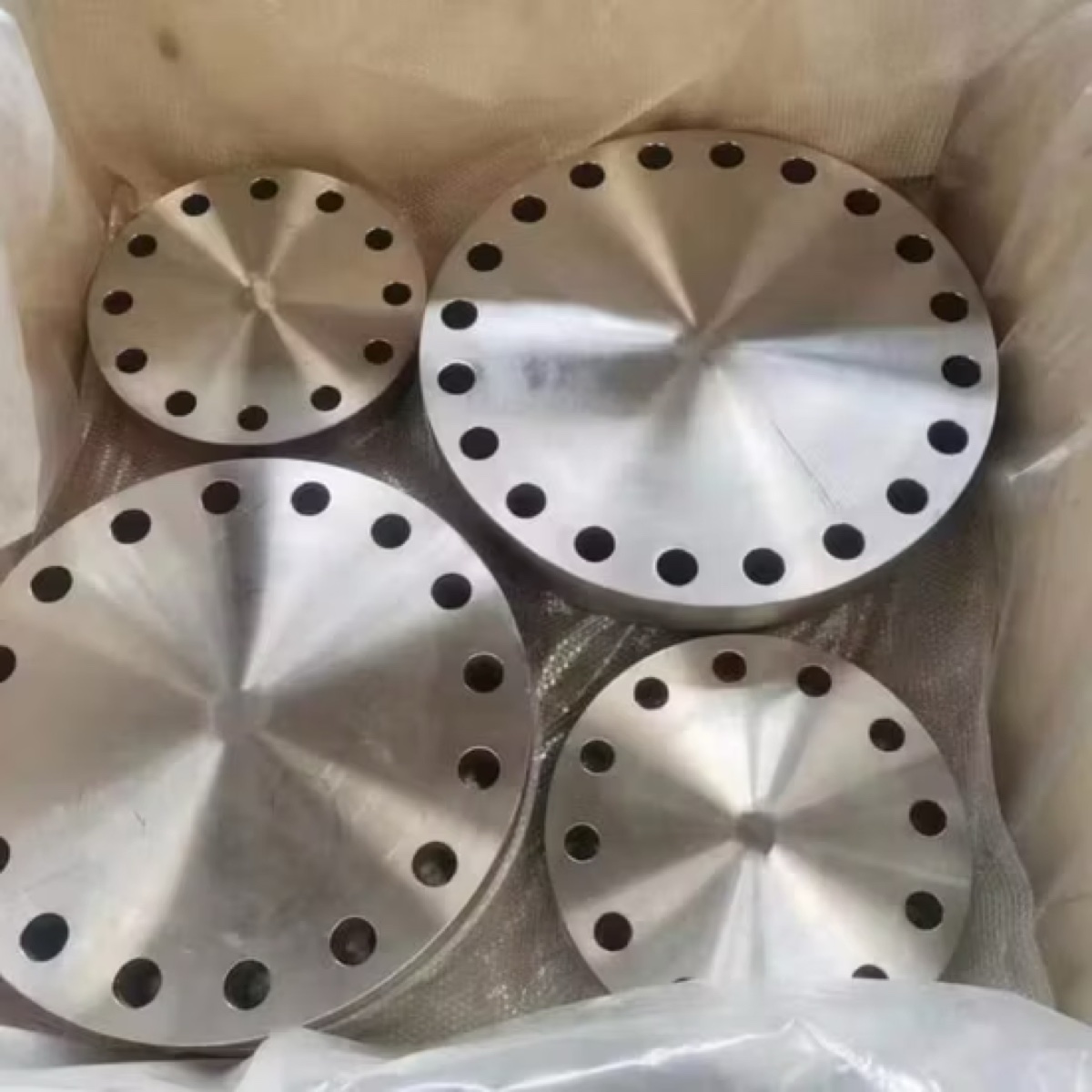

Forged Blind Flanges — Machined to ASME B16.5Blind Flange to ASME B16.5 — Raised Face
F321 Blind Flange Dimensions
Blind dimensions are class-governed — identical across material grades. Full charts:
Five elements — the H-variant question is the 321-specific one:
1
Size & standard — e.g. 4″ NB ASME B16.5, or the B16.47 series for 26″ and above.
2
Pressure class & facing — Class 150–2500; RF, FF or RTJ (with ring number) to match the mating flange.
3
Grade & variant — ASTM A182 F321, or F321H where the design code requires rated creep strength; EN 1.4541 designation where the project asks for it.
4
Service & certification — state temperature and cycling; NPT tap size if a test blind; IGC (A262), PMI or 3.2 witnessing as specified; EN 10204 3.1 standard.
An ASTM A182 F321 blind flange is a solid forged disc of titanium-stabilised austenitic stainless steel — UNS S32100, the stabilised 304 known in Europe as EN 1.4541 — drilled to the standard bolt pattern with no bore, used to close pipes, ducts and nozzles in welded hot service: exhaust and expansion systems, heater and hot-air circuits, and hot hardware with aerospace heritage. A small titanium addition ties up the carbon, so the steel can be welded and then live inside the 425-815°C sensitization band without intergranular trouble. Dimensions follow ASME B16.5 from ½ inch to 24 inch and ASME B16.47 beyond, in raised face, flat face and ring joint facings.
What does titanium stabilisation do in F321?
It disarms sensitization permanently. Between 425 and 815°C, carbon in ordinary stainless precipitates as chromium carbides at grain boundaries, stripping the chromium that corrosion resistance depends on. Titanium forms its own carbides far more readily, capturing the carbon before chromium ever could — and unlike low-carbon protection, which only thins the threat, stabilisation removes it: the steel can sit at 600°C for years, not just survive a weld pass. That permanence is why 321 became the default stainless for hardware that works hot rather than merely gets welded.
What is the difference between F321 and F304L?
Both are weld-safe 304 derivatives, but for different lives. F304L removes the carbon (≤0.030%) — perfect for systems that are welded once and then run at ambient, which is why it dominates general fabrication. F321 keeps the carbon and locks it up with titanium, which matters when the service itself is hot: parked inside the sensitization band, even L-grade carbon eventually finds its way out, while stabilised carbon never escapes. F321 also keeps full 515/205 MPa strength where 304L drops to 485/170. Cold welded plant: 304L. Hot working duty: 321.
F321 or F316Ti — how does the stabilised pair divide the work?
By one question: do chlorides ride along with the heat? F321 is titanium-stabilised 304 — no molybdenum — the economical answer for hot oxidising duty: exhausts, heaters, hot-air systems. F316Ti is titanium-stabilised 316 — molybdenum retained — for hot duty that also carries chlorides or aggressive process chemistry, and it is the more European-flavoured specification. Same trick, different bases; if the certificate needs no molybdenum, 321 does the stabilised job at 304 cost.
What does the titanium formula 5×(C+N) mean?
Titanium dosed to the job rather than a fixed window. Every atom of carbon and nitrogen needs titanium to capture it, so A182 requires titanium at no less than five times the combined carbon and nitrogen content, capped at 0.70% so surplus titanium does not degrade the steel. A certificate reading C 0.05% and N 0.04% therefore needs titanium of at least 5 × 0.09 = 0.45%. It is the one element verified with arithmetic rather than a range — and our PMI reads the titanium on every piece.
What are the mechanical properties of F321 blind flanges?
The full standard numbers: tensile strength 515 MPa (75 ksi) minimum, yield strength 205 MPa (30 ksi) minimum, elongation 30% minimum and reduction of area 50% minimum, solution annealed, with no hardness limit in A182. Stabilisation, unlike carbon removal, costs nothing mechanically — the grade rates on the standard austenitic pressure-temperature lines with no L-grade penalty, and its retained carbon plus fine titanium carbides give it respectable strength at working temperature, formalised in the F321H variant for code creep design.
What temperature range does an F321 blind flange cover?
Its defining territory is the 425-815°C sensitization band — the range other austenitic grades pass through nervously, 321 occupies as home. Scaling limits sit around 870-900°C in oxidising service, comfortably above its usual working window. Below the band it behaves like any 304, cryogenic toughness included. For code-governed creep design the F321H variant carries the allowables; when temperature outruns stabilisation altogether and the question becomes scale survival near 1000°C and beyond, the heat-ladder handoff is F310.
What is the F321H variant?
The creep-rated version — UNS S32109, carbon controlled at 0.04-0.10% with the minimum enforced, and titanium at a relaxed 4×(C+N) so enough carbon stays available for creep strength. It is the H-grade logic applied to the stabilised base: guaranteed carbon floor, established elevated-temperature allowables, for pressure parts designed to ASME rules above roughly 525°C. Straight F321 covers general hot hardware; specify the H suffix when the design code demands rated creep strength. We forge both.
How does 321 compare with 347?
Same strategy, different stabiliser. 347 uses columbium (niobium) instead of titanium; niobium carbides are slightly more stable at the hottest end, 347 resists knife-line attack marginally better, and it is the traditional choice in some refinery and high-temperature hydrogen services. 321 answers with wider availability, easier melting, and decades of exhaust-and-airframe pedigree — titanium is also lighter on the alloy bill. For most flange duty they are interchangeable stabilised 18-8s; the line class or the plant's history usually decides. We supply 347 forgings against enquiry where the specification names it.
Does F321 have any downsides?
The stabilised grade's honest list. Titanium carbides can appear as fine stringers on machined surfaces — cosmetic on a gasket face, but mirror-polish applications prefer 304L/316L. A narrow zone beside welds could historically suffer knife-line attack, rare with modern practice. Titanium burns off in some welding processes, so matching filler is chosen accordingly (commonly 347 filler). And in wet chloride service 321 is only as good as its 304 base — no molybdenum means the chloride ladder starts elsewhere. None of this dents its standing in the hot, dry work it was built for.
A blind flange isn't welded — why specify 321?
Because the closure shares the system's temperature, not just its welds. A blind on an exhaust header or hot-air circuit spends its life inside the same 425-815°C band as the pipework — and sensitization is a service-temperature phenomenon as much as a welding one. A non-stabilised closure would slowly sensitize in place, arc or no arc. Add the usual system logic — one line-class material for certificates, procedures and the welded spool that may replace the blind at the next revamp — and the stabilised specification follows the closure too.
What facings are F321 blind flanges made with?
All three: raised face (BLRF) — the default — flat face (BLFF) for mating flat-faced ducting and lined equipment, and ring type joint (BLRTJ) where high-pressure practice calls for it, the ring chosen softer than the groove. Each facing has its own page on this site. Gasket materials deserve attention at 321's working temperatures — graphite and mica systems have their own limits, and thermal cycling loosens joints that were bolted for ambient. NPT-tapped test and instrument blinds are machined and certified at the works.
Where are F321 blind flanges used?
Wherever welded stainless works hot: engine and turbine exhaust systems, expansion-joint and bellows assemblies, fired-heater and hot-air circuits, thermal oxidiser trains, jacketed reactors and hot-oil systems, refinery process piping in the stabilised line classes, and the aerospace-heritage hardware the grade grew up in. F321 blinds close those systems as isolations, spare-nozzle blanks and tapped test points, holding their certificates through years inside the temperature band that defines the grade.
Which standards cover F321 blind flanges?
The material standard is ASTM A182 grade F321 (UNS S32100), with ASME SA-182 as its boiler-code twin and EN 1.4541 / X6CrNiTi18-10 as the European equivalent; F321H (S32109) is the creep-rated variant. Dimensions follow ASME B16.5 for ½"-24" and ASME B16.47 for 26"-60", rated on the standard austenitic lines. A complete specification reads: 'Blind Flange, RF, 4", ASME B16.5 Class 300, ASTM A182 F321' — with the H suffix where the design code requires it — and our EN 10204 certificates state it exactly that way.
Who manufactures ASTM A182 F321 blind flanges in India?
Tesco Steel & Engineering is an ISO 9001:2015 certified flange manufacturer based in Mumbai, India, forging ASTM A182 F321 / UNS S32100 / EN 1.4541 blind flanges — with the F321H creep-rated variant to order — from ½" to 24" NB per ASME B16.5 in Classes 150-2500 and to 60" per ASME B16.47, solution annealed, pickled and passivated, PMI-verified with the titanium read on every piece and checked against the 5×(C+N) rule, certified to EN 10204 3.1/3.2 on every lot, in raised face, flat face and ring joint facings — alongside F316Ti, the F304 and F316 families, F310 and the full duplex and nickel-alloy blind ranges. Exported to more than 50 countries.
