ASTM A182 F321 Weld Neck Flanges — Titanium-Stabilized SS 321 (UNS S32100)
Tesco Steel & Engineering forges ASTM A182 F321 weld neck flanges in stainless steel 321 — UNS S32100, Werkstoff Nr. 1.4541, the titanium-stabilized 18Cr-10Ni austenitic — from 1/2″ NB to 56″ NB, in ASME B16.5 Class 150–2500 and European PN patterns. Titanium locks the carbon into stable carbides, so 321 works straight through the 425–816 °C sensitization zone that quietly ruins ordinary 304 — the classic stainless of exhaust systems, fired heaters, expansion bellows and hot process piping, mating A312 TP321 pipe. The high-carbon creep grade F321H (S32109) is forged alongside it. Supplied pickled & passivated with IBR, PMI and EN 10204 3.1/3.2 on request. ISO 9001:2015, made in Mumbai, India — exported worldwide.
A182 F321 · UNS S32100 · 1.4541
Ti-Stabilized · 5×(C+N) Min
Hot Service 425–816 °C
1/2″ – 56″ NB
Class 150 – 2500 · PN 2.5 – 400
F321H Creep Grade Also Forged
ISO 9001:2015 · Exported Worldwide

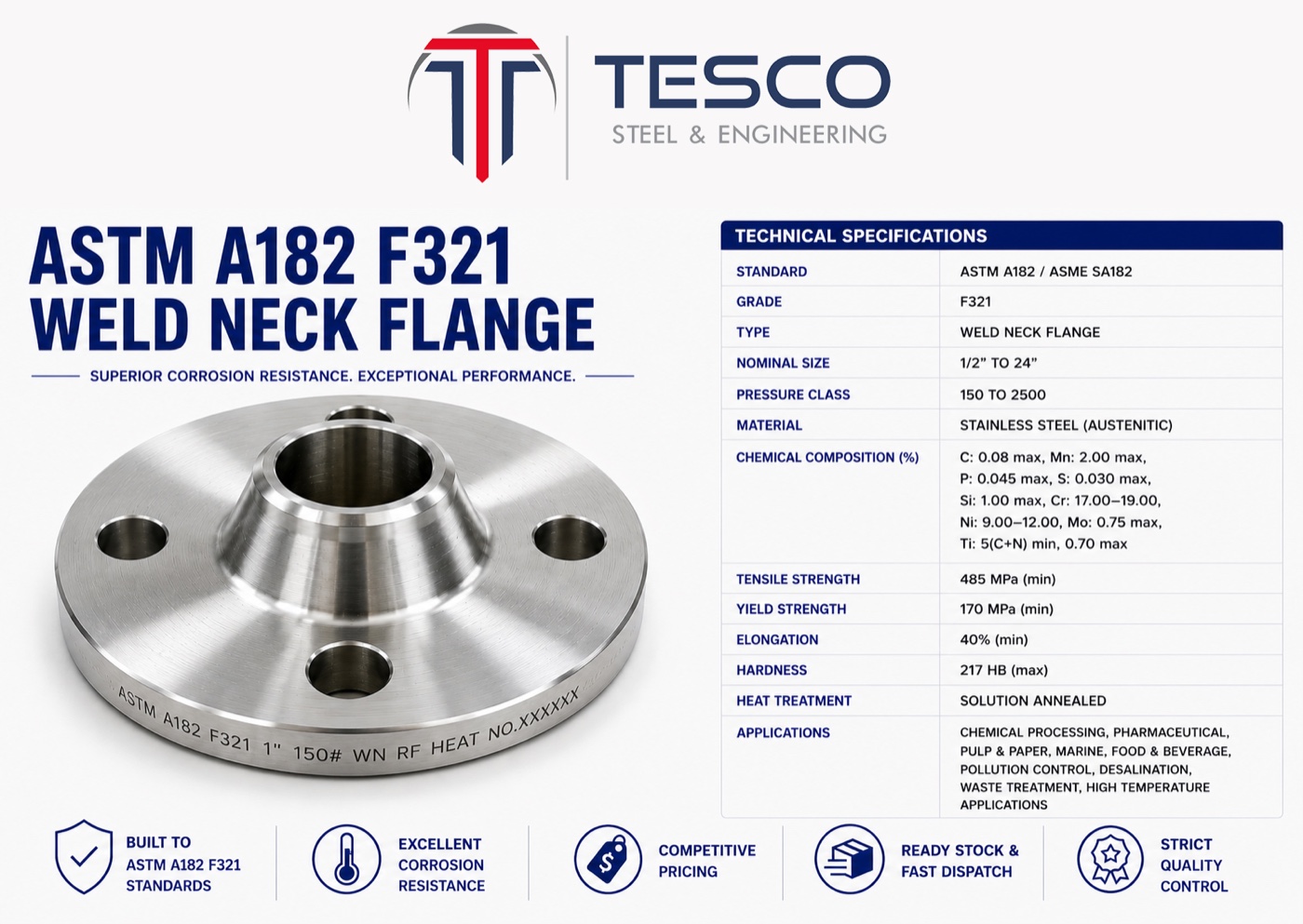

ASTM A182 F321 Weld Neck Flange — Stainless Steel 321 (UNS S32100), Technical Specifications
What is an ASTM A182 F321 Weld Neck Flange?
ASTM A182 F321 is the forged-flange grade of stainless steel 321 (UNS S32100 / 1.4541) — classic 18Cr-10Ni austenitic chemistry with a titanium addition of at least 5×(C+N). The titanium ties carbon into stable carbides before chromium can, so the grade passes through the 425–816 °C sensitization zone indefinitely without losing its corrosion resistance — the failure that quietly ruins plain 304 in hot service. An F321 weld neck flange pairs that metallurgy with a long tapered hub butt-welded to the pipe, bore matched to schedule, joint fully radiographable.
The grade's pedigree is aeronautical — aircraft exhausts, jet pipes and engine manifolds made 321 famous — and the same virtues serve fired heaters, expansion bellows and refinery hot lines today: stability through thermal cycling, useful hot strength, and welding without post-treatment. For sustained creep-range pressure design, the code points to the high-carbon F321H (S32109), which carries certified time-dependent allowable stresses — we forge both.
Its stabilized siblings split by enemy: 316Ti adds molybdenum for corrosive chemistry, 347 stabilizes with niobium for refinery polythionic-acid duty. 321 owns the heat side — hot air, exhaust and combustion gas.
Also searched as: SS 321 weld neck flange, UNS S32100 flange, 1.4541 flange, 321 WNRF flange, SA182 F321 flange, 321H flange (see our
F321H page) — all covered by our stabilized stainless range.
Chemical Composition of ASTM A182 F321
| C | Mn | Si | P | S | Cr | Ni | N | Ti |
|---|
| 0.080 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 17.00-19.00 | 9.00-12.00 | 0.10 max | 5(C+N) – 0.70 max |
Values in weight %. The titanium requirement — 5×(C+N) minimum to 0.70% max — is the grade's defining feature: enough Ti to lock every carbon atom into stable TiC, keeping chromium at the grain boundaries where corrosion resistance lives. The H variant (321H / S32109) requires carbon at 0.04–0.10% with a 4×C stabilization ratio for certified creep strength.
Mechanical Properties of ASTM A182 F321
| Tensile Strength, MPa | Yield Strength, Min, MPa | Elongation % min. | Hardness Rockwell HRB | Hardness Brinell HB |
|---|
| 515 | 205 | 30 | 95 max | 217 max |
Minimums per ASTM A182. The grade retains a useful fraction of that strength deep into its hot working range — the property behind its exhaust-system pedigree. The solution-annealed condition is documented on every certificate.
Equivalent Grades of ASTM A182 F321
| Standard | Werkstoff Nr. | UNS | JIS | EN |
|---|
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
The high-carbon creep variant is 321H / UNS S32109 / 1.4878 — see our F321H weld neck flanges. System partners: A312 TP321/TP321H pipe, A403 WP321 fittings and A240 321 plate. Stabilized siblings: 316Ti and 347.
ASTM A182 F321 Weld Neck Flange Specifications
| ASTM A182 321 Weld Neck Flanges are available in the following specifications: |
|---|
| Size | 1/2"NB to 56"NB |
| Class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Sch (Schedule) | XS, XXS, STD & Schedule 20, 40, 80, 160 |
| Pressure Ratings | PN 2.5 - PN 400 |
| Standards | ASME B16.5, ASME B16.47, EN 1092-1 Type 11, DIN 2631–2635, BS 4504 |
| Condition | Solution Annealed; titanium-stabilized (Ti ≥ 5×(C+N)); F321H also available |
| Other Services | Pickling & passivation on ASTM A182 321 Weld Neck Flanges
Sand Blasting on ASTM A182 321 Weld Neck Flanges
Shot Peening on ASTM A182 321 Weld Neck Flanges
IGC (ASTM A262), PMI & IBR Form III-C certification
Project-specific marking, wrapping & export packing |
Why 321 is the Hot-Service Stainless
Immune to the Sensitization Zone
425–816 °C ruins plain 304's corrosion resistance; titanium stabilization lets 321 live there indefinitely — the whole point of the grade.
Aerospace Pedigree
Aircraft exhausts, jet pipes and engine manifolds made 321 famous — thermal-cycling duty that proves a material honestly.
Welds Without Post-Treatment
The stabilized base metal protects the heat-affected zone, so joints go into hot service as-welded with 347 filler.
F321H for the Creep Range
When design temperatures demand code-listed time-dependent stresses, the high-carbon H variant is forged alongside — one source, both grades.
Boiler Paperwork Ready
IBR Form III-C for Indian boiler scope, 3.2 witness, PMI and IGC testing — the documentation hot-service projects specify.
Welding 321 — Stabilized Base, 347 Filler
321 welds with standard austenitic practice — moderate heat input, no preheat, no PWHT — with the stabilized-grade consumable subtlety: titanium does not transfer reliably across the arc, so joints use niobium-stabilized 347 filler (ER347), delivering a stabilized weld metal to match the stabilized base. The base metal's titanium protects the heat-affected zone — which is where 321 earns its keep.
Creep-range note: for sustained pressure duty above ~525 °C, specify
F321H — its 0.04–0.10% carbon carries the certified ASME creep stresses that standard 321's chemistry cannot.
Where ASTM A182 F321 Weld Neck Flanges Are Used
Heat leads: exhaust and flue systems, fired heater and furnace piping, expansion joints and bellows, aerospace and defence hot sections. Refineries flange hot hydrocarbon lines in it; power plants use it on boiler auxiliaries; chemical plants specify it wherever lines cycle through the sensitization zone. Our machined weld neck production below:

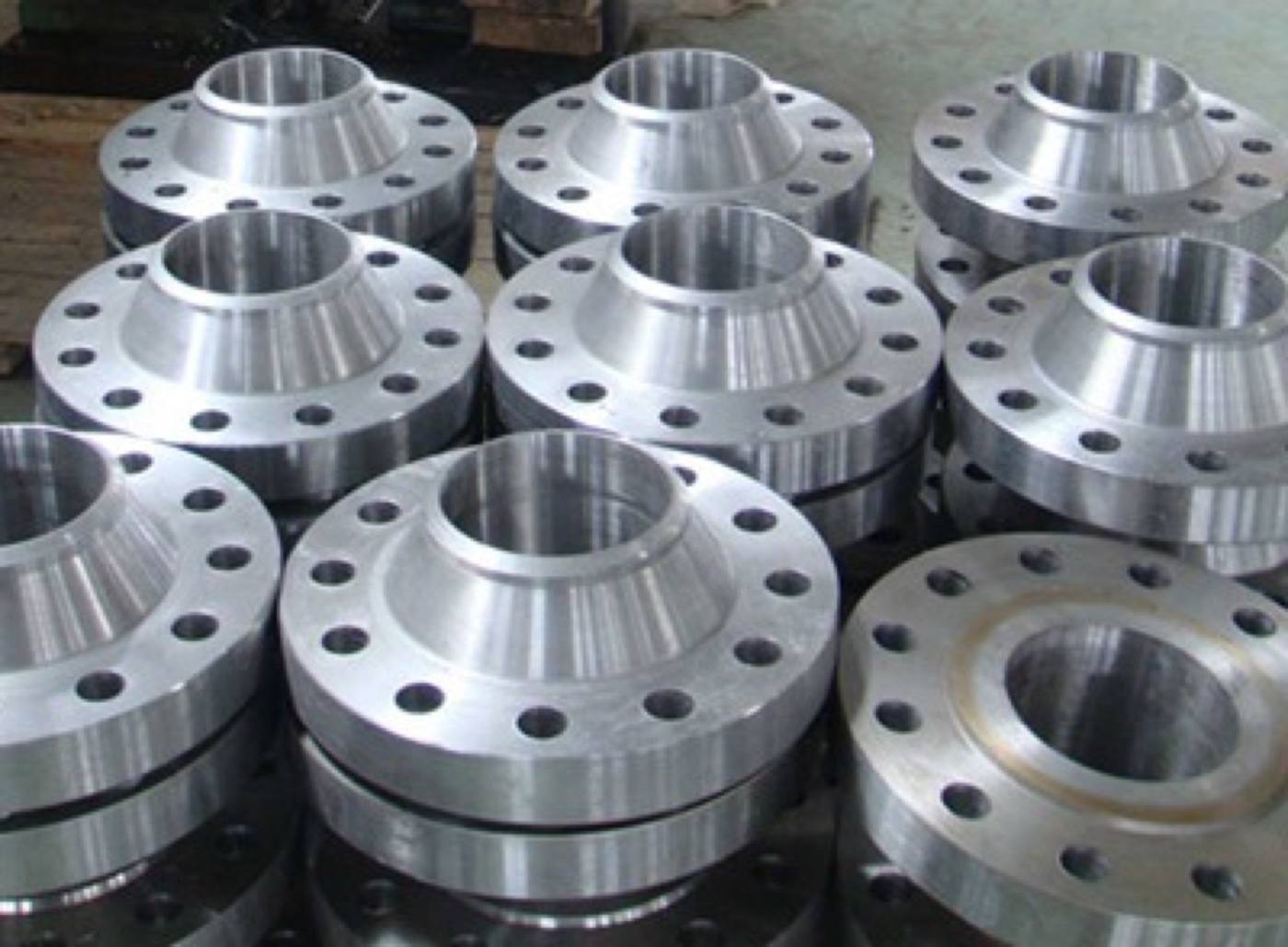

ASTM A182 F321 Weld Neck Flanges — Machined Production Stock
ASTM A182 F321 Weld Neck Flange Dimensions
F321 weld neck flanges share their dimensions with every other material in the same class — OD, thickness, hub, bore, bolt circle and bolting per the standard tables. Full ASME B16.5 charts:
European PN dimensions are published on the EN 1092-1 Type 11, DIN 2631–2635 and BS 4504 pages.
Price List & How to Order
Stainless pricing tracks nickel plus the certification scope, so we quote live with a stated validity rather than publish a static list. To get a firm quotation, usually within 24 hours:
1
List your requirement — size (NB), class or PN, standard (ASME B16.5 / B16.47 / EN / DIN / BS), grade (F321 — or F321H for creep-range design), pipe schedule or bore, and quantity.
2
Add the certification scope — IBR Form III-C, 3.2 witness, PMI, IGC A262 or project specifications.
ASTM A182 F321 Weld Neck Flanges — Frequently Asked Questions
What is an ASTM A182 F321 weld neck flange?
It is a weld neck flange forged from ASTM A182 grade F321 — titanium-stabilized stainless steel 321, UNS S32100 / 1.4541. Titanium ties up carbon as stable carbides, so the grade shrugs off the 425 to 816 °C sensitization zone that attacks ordinary 304. The long tapered hub is butt-welded to the pipe with the bore matched to the pipe schedule, giving a radiographable, fatigue-resistant joint in the classic stainless of hot exhaust, heater and process piping.
What is the difference between 321 and 304 stainless steel?
The titanium addition — at least five times the carbon content. In the 425 to 816 °C window, plain 304 precipitates chromium carbides at grain boundaries and loses its corrosion resistance; 321's titanium has already locked the carbon away, so the grade works through that zone indefinitely. Room-temperature properties are near-identical. If the flange will live hot — exhausts, heaters, expansion bellows — 321 is the 304 that survives it.
What is the difference between F321 and F321H flanges?
Carbon, and the code credit it buys. Standard 321 allows carbon to 0.08% with titanium stabilization; 321H (UNS S32109) requires carbon at 0.04 to 0.10% and adjusts the stabilization ratio at 4×C minimum, giving it the certified creep and stress-rupture strength ASME codes list above about 525 °C. For sustained pressure duty in the creep range, specify F321H — we forge it alongside standard F321, so either callout is covered from one source.
What is the difference between 321 and 316Ti?
Both are titanium-stabilized austenitics; the difference is molybdenum. 316Ti is stabilized 316 — its 2-3% Mo resists chloride pitting and process acids, making it the corrosion-side choice. 321 is stabilized 304, built for the heat side: exhaust gas, hot air and combustion environments where molybdenum adds cost without benefit. Pick by the enemy: chemistry attacks call for 316Ti, temperature calls for 321.
What temperature range can F321 flanges be used in?
The grade's home is 425 to 816 °C — the sensitization zone it was engineered to survive — with oxidation resistance in intermittent service to about 870 °C. At the cold end, austenitics keep toughness to cryogenic temperatures. For sustained creep-range pressure design, the code points to the high-carbon 321H variant, which carries certified time-dependent allowable stresses.
What are the equivalent designations for A182 F321?
SS 321 in general usage; UNS S32100; Werkstoff Nr. 1.4541 (EN X6CrNiTi18-10); and JIS SUS 321. The high-carbon variant is 321H / UNS S32109 / 1.4878. System partners share the chemistry: A312 TP321 seamless pipe, A403 WP321 butt-weld fittings and A240 321 plate. An enquiry in any of these designations is quoted as the same material.
What is the chemical composition of ASTM A182 F321?
Per ASTM A182: carbon 0.080% max, manganese 2.00% max, silicon 1.00% max, phosphorus 0.045% max, sulphur 0.030% max, chromium 17.00 to 19.00%, nickel 9.00 to 12.00%, nitrogen 0.10% max and titanium at five times the carbon-plus-nitrogen content up to 0.70% max — the stabilization requirement that defines the grade and locks the carbon into harmless carbides.
What are the mechanical properties of A182 F321 flanges?
Minimum tensile strength 515 MPa (75 ksi), minimum yield strength 205 MPa (30 ksi) and minimum elongation 30%, with hardness typically limited to 95 HRB / 217 HB. The solution-annealed condition is documented on every certificate, and the grade retains a useful fraction of that strength deep into its hot working range — the property that built its aerospace exhaust pedigree.
Which pipe grades do F321 weld neck flanges mate with?
ASTM A312 TP321 seamless and welded pipe is the standard partner — TP321H for creep-range systems — with A403 WP321 butt-weld fittings completing the system. The weld neck bore is machined to the pipe schedule you state, so the bore runs flush through the joint and the bevel arrives ready for a matched-chemistry butt weld.
How are 321 flanges welded to pipe?
Standard austenitic practice — moderate heat input, no preheat, no PWHT — with the stabilized-grade consumable subtlety: titanium does not transfer reliably across the arc, so joints use niobium-stabilized 347 filler (ER347), which delivers a stabilized weld metal to match the stabilized base. The base metal's titanium protects the heat-affected zone, which is where 321 earns its keep.
Why is 321 used in aircraft and exhaust applications?
Because exhaust duty is thermal cycling through exactly the temperatures that sensitize ordinary stainless. 321 passes through 425 to 816 °C indefinitely without losing its corrosion resistance, keeps useful strength when hot, and welds without post-treatment — the combination that made it the historic grade of aircraft exhaust stacks, jet pipe components, engine manifolds and industrial expansion bellows, a pedigree it carries into refinery and power service today.
Are F321 flanges suitable for IBR (boiler) applications?
Yes — hot boiler auxiliaries and steam-adjacent duty suit the grade, and we supply flanges with IBR Form III-C certification for Indian boiler regulation scope on request; for creep-range pressure parts the H variant is the code-correct choice. State the IBR requirement in the enquiry so the heat, testing and documentation are aligned from the start.
What testing and certification do you supply with F321 flanges?
Every lot ships with EN 10204 3.1 mill test certificates covering chemical analysis — including titanium and the stabilization ratio — mechanical properties and the solution-anneal record, with 3.2 certification witnessed by Lloyd's, DNV, BV or TÜV on request. We also offer intergranular corrosion testing to ASTM A262, PMI verification, IBR Form III-C and hydrostatic or hardness testing to project specifications, with full heat-number traceability.
Where are ASTM A182 F321 weld neck flanges used?
Exhaust and flue systems, fired heater and furnace piping, expansion joints and bellows, refinery units running hot hydrocarbon streams, power plant auxiliaries, aerospace and defence hot sections, and chemical plants whose lines cycle through the sensitization zone. Wherever 304 would quietly lose its corrosion resistance to heat, 321 is the drop-in answer at a modest premium.
What sizes and standards do you manufacture F321 weld neck flanges in?
From 1/2 inch NB to 56 inch NB: ASME B16.5 Class 150 to 2500 up to 24 inch, ASME B16.47 above, and European PN 2.5 to PN 400 patterns to EN 1092-1 Type 11, DIN and BS 4504. Raised face is standard, ring joint on request — the machined weld necks photographed on this page are our own production — and every bore is machined to the mating pipe schedule from Sch 10 through XXS.
Do you keep A182 F321 weld neck flanges in stock? What is the lead time?
Common refinery and exhaust-system sizes in Class 150, 300 and 600 rotate through regular production, with popular items often available from stock. Larger diameters, higher classes, F321H and witness-tested lots are forged to order, typically in 3 to 5 weeks. Prices track nickel, so quotations carry a validity period — send the size list and we confirm the stock position the same day.
What information should I include in an F321 flange enquiry?
Six things: size (NB), pressure class or PN rating, dimensional standard (ASME B16.5, B16.47 or EN/DIN/BS), grade (F321 — or F321H if the design sits in the creep range), pipe schedule or bore, and quantity. Add any certification scope — IBR Form III-C, 3.2 witness, PMI, IGC A262 — since hot-service paperwork is usually specification-driven. With these details we return a firm quotation, usually within 24 hours.
Do you export ASTM A182 F321 flanges outside India?
Yes. Tesco Steel & Engineering is an ISO 9001:2015 certified manufacturer based in Mumbai, and F321 flanges ship to refinery, power and process projects across the Middle East, Europe, Africa, Southeast Asia and the Americas. Flanges travel pickled, face-protected and seaworthy-packed, with full heat-number and test traceability.
