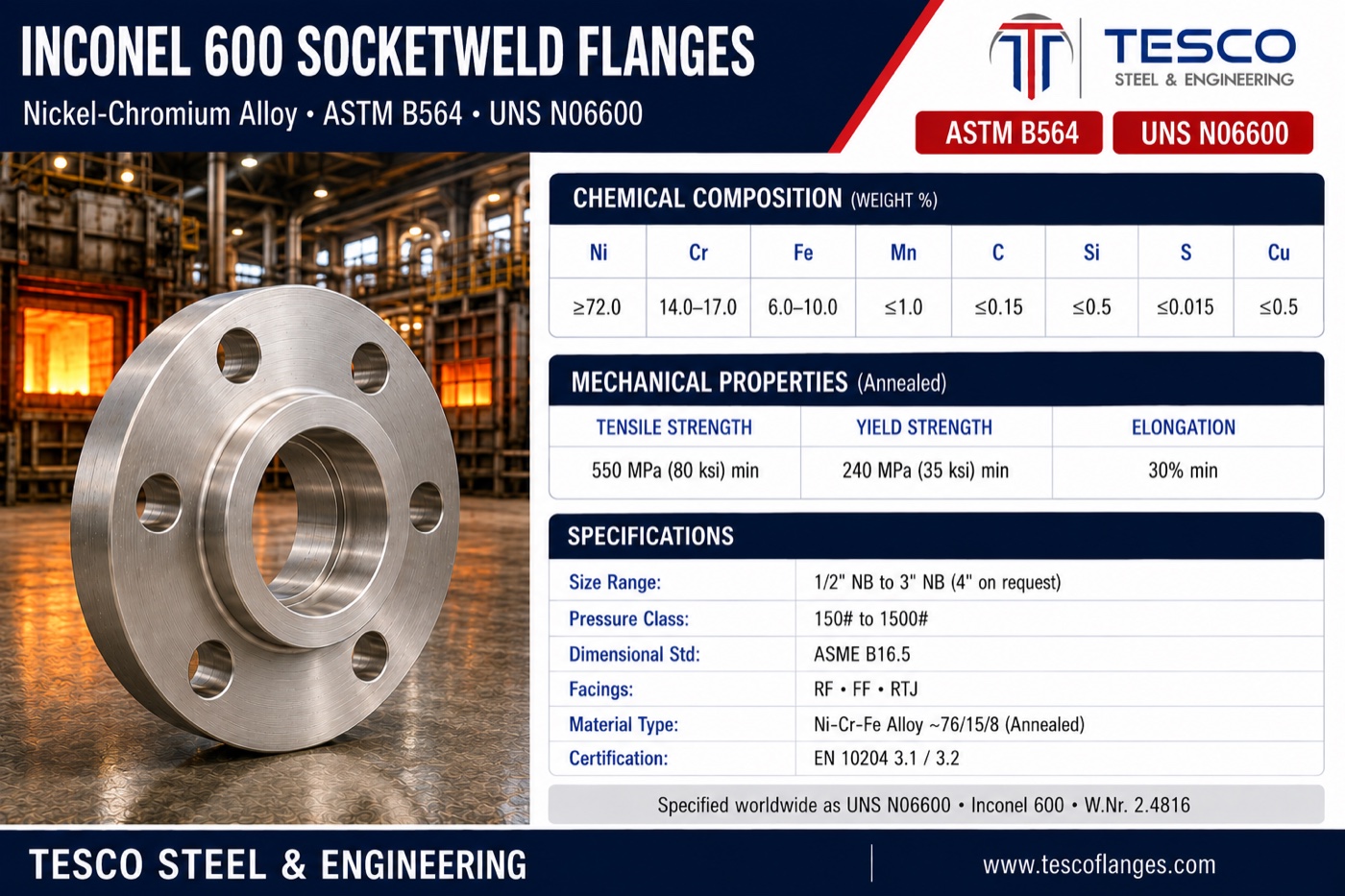

These Inconel 600 Socket Weld Flanges are counter bored to accept the pipe before being fillet welded. UNS N06600 Socket welding flanges are typically used on smaller sizes of high pressure pipes. The pipe is inserted into the socket end of the 2.4816 socketweld flange and fillet weld is applied around the hub of the flange. The bore of the pipe and flange are both same therefore giving smooth flow characteristics. An optional internal weld may be applied in high stress applications. Tesco Steel & Engineering manufacture a wide range of high quality EN NiCr15Fe Socket Weld Flanges in India. We offer these flanges in ASME/ANSI/DIN standards.
| C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|
| 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00-10.00 | 72.00 min | 14.00-17.00 |
| Tensile Strength, MPa | Yield Strength, Min, Mpa | Elongation % min. |
|---|---|---|
| 655 | 310 | 40 |
| Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 600 Socket Weld Flanges are available in the following specifications: | |
|---|---|
| Size | 1/2"NB to 56"NB |
| Class | 150#, 300#, 3000#, 6000#, 9000# |
| Sch (Schedule) | XS, XXS, STD & Schedule 20, 40, 80, 160 |
| Pressure Ratings | PN 1 - PN 400 |
| Other Services | Hot Dip Galvanized (GI) Inconel 600 Socket Weld Flanges Sand Blasting on Inconel 600 Socket Weld Flanges Shot Peening on Inconel 600 Socket Weld Flanges Epoxy Coating on Inconel 600 Socket Weld Flanges FBE Coating on Inconel 600 Socket Weld Flanges |
