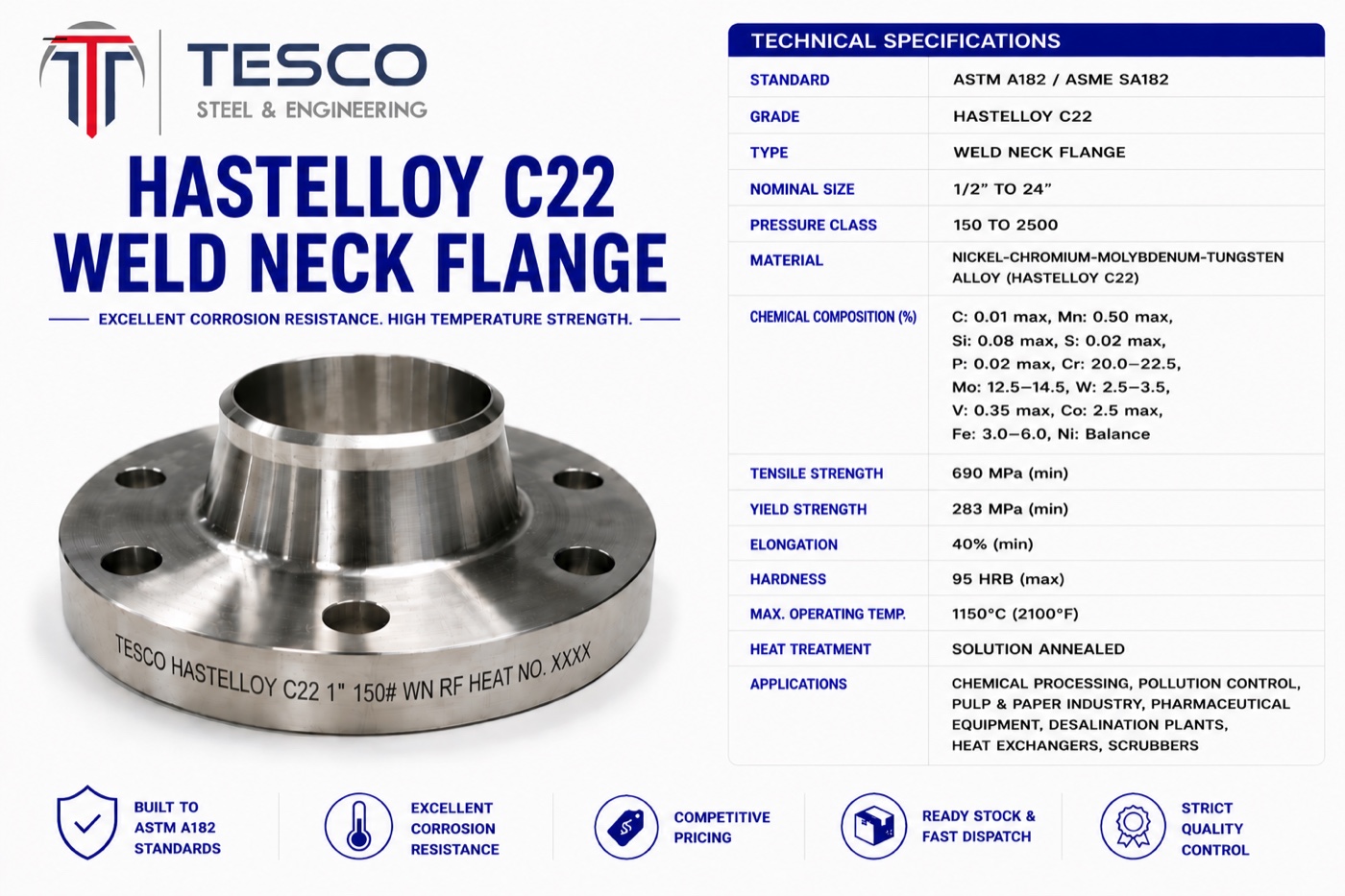

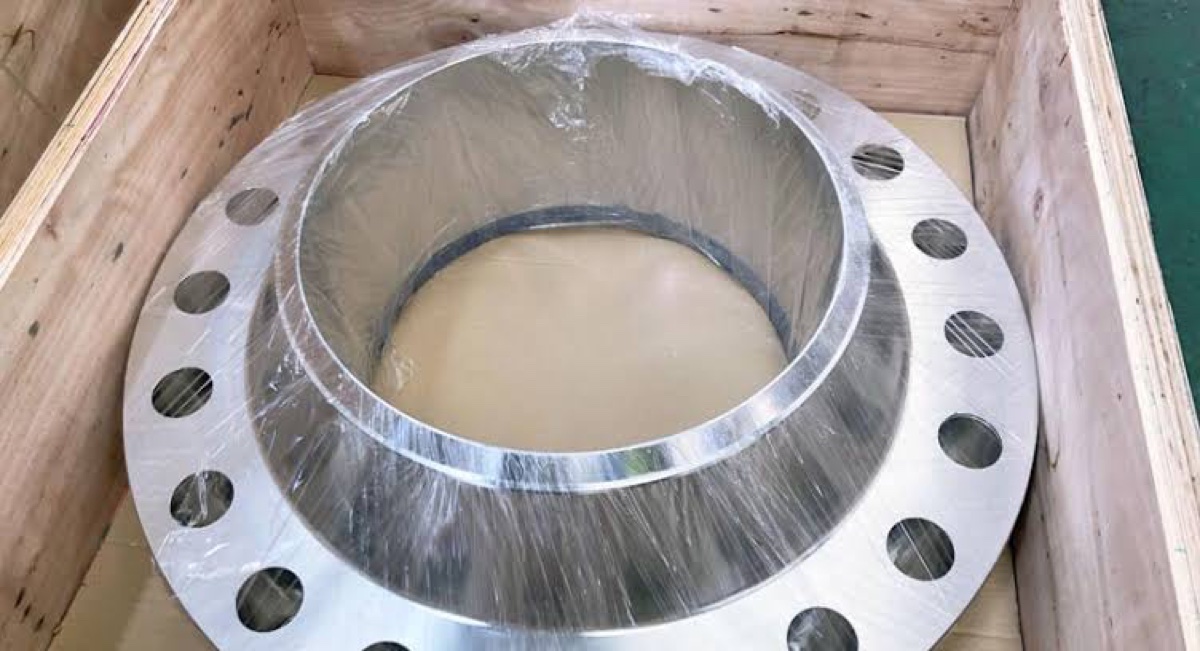

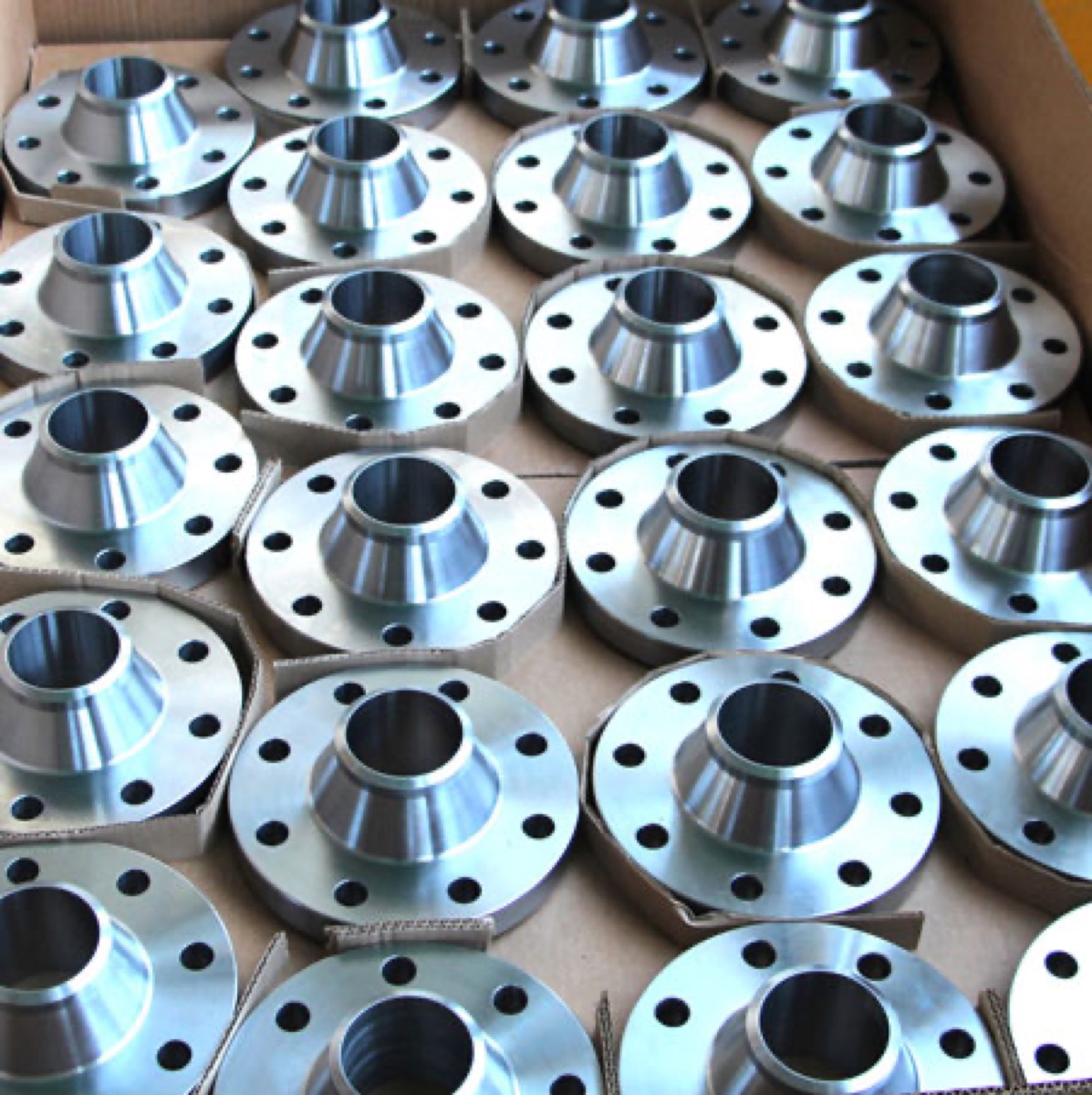

Hastelloy c22 Weld Neck Flanges are generally used in high pressure applications, where hot or cold temperatures exist. These steel c22 weld neck flanges are circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. These UNS N06022 weldneck flanges reduce the turbulence and erosion inside the pipeline because the bores of both pipe and flange match. This also reduces high stress concentration at the base of the hub of the EN NiCr21Mo14W weld neck pipe flange. Such weld neck are favoured in critical applications. The inside diameter of a weld neck flange is machined to match the inside diameter of the pipe. Tesco Steel & Engineering manufacture a wide range of high quality 2.4602 Weld Neck Flanges in India. We offer these flanges in ASME/ANSI/DIN standards.
| C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|
| 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min | 20.00-22.50 | 2.00-6.00 | 12.50-14.50 | 0.02 max |
| Tensile Strength, MPa [psi] | Yield Strength, Min, Mpa [psi] | Elongation % min. |
|---|---|---|
| 690 [100000] | 310 [45000] | 45 |
| Standard | Werkstoff Nr. | UNS | JIS | EN |
|---|---|---|---|---|
| Hastelloy c22 | 2.4602 | N06022 | NW 6022 | NiCr21Mo14W |
| Hastelloy c22 Weld Neck Flanges are available in the following specifications: | |
|---|---|
| Size | 1/2"NB to 56"NB |
| Class | 150#, 300#, 3000#, c220#, 9000# |
| Sch (Schedule) | XS, XXS, STD & Schedule 20, 40, 80, 160 |
| Pressure Ratings | PN 1 - PN 400 |
| Other Services | Hot Dip Galvanized (GI) Hastelloy c22 Weld Neck Flanges Sand Blasting on Hastelloy c22 Weld Neck Flanges Shot Peening on Hastelloy c22 Weld Neck Flanges Epoxy Coating on Hastelloy c22 Weld Neck Flanges FBE Coating on Hastelloy c22 Weld Neck Flanges |
