Tesco Steel & Engineering manufactures ASTM A182 F12 socketweld flanges — 1Cr-½Mo alloy steel, Class 2, UNS K11564 — to ASME B16.5 from ½″ to 3″ NB in Classes 150–1500 (2500 and 4″ to order). F12 is F11's leaner sibling on the creep end of the chrome-moly ladder — same steam mission, chromium banded at 0.80–1.25% — and the natural flange match for P12 pipe and T12 tube systems: one family, one welding procedure, one thermal expansion, one certificate story. Carbon with a deliberate minimum (0.10–0.20%), because creep strength is carbide strength. Socket seated, one external fillet weld, moderate low-chrome preheat/PWHT discipline. Facings: SWRF, SWFF, SWRTJ. Hotter steam? F22. Sour and hot? F5. Every lot with EN 10204 3.1/3.2 MTC. ISO 9001:2015, made in Mumbai, India — exported to 50+ countries.

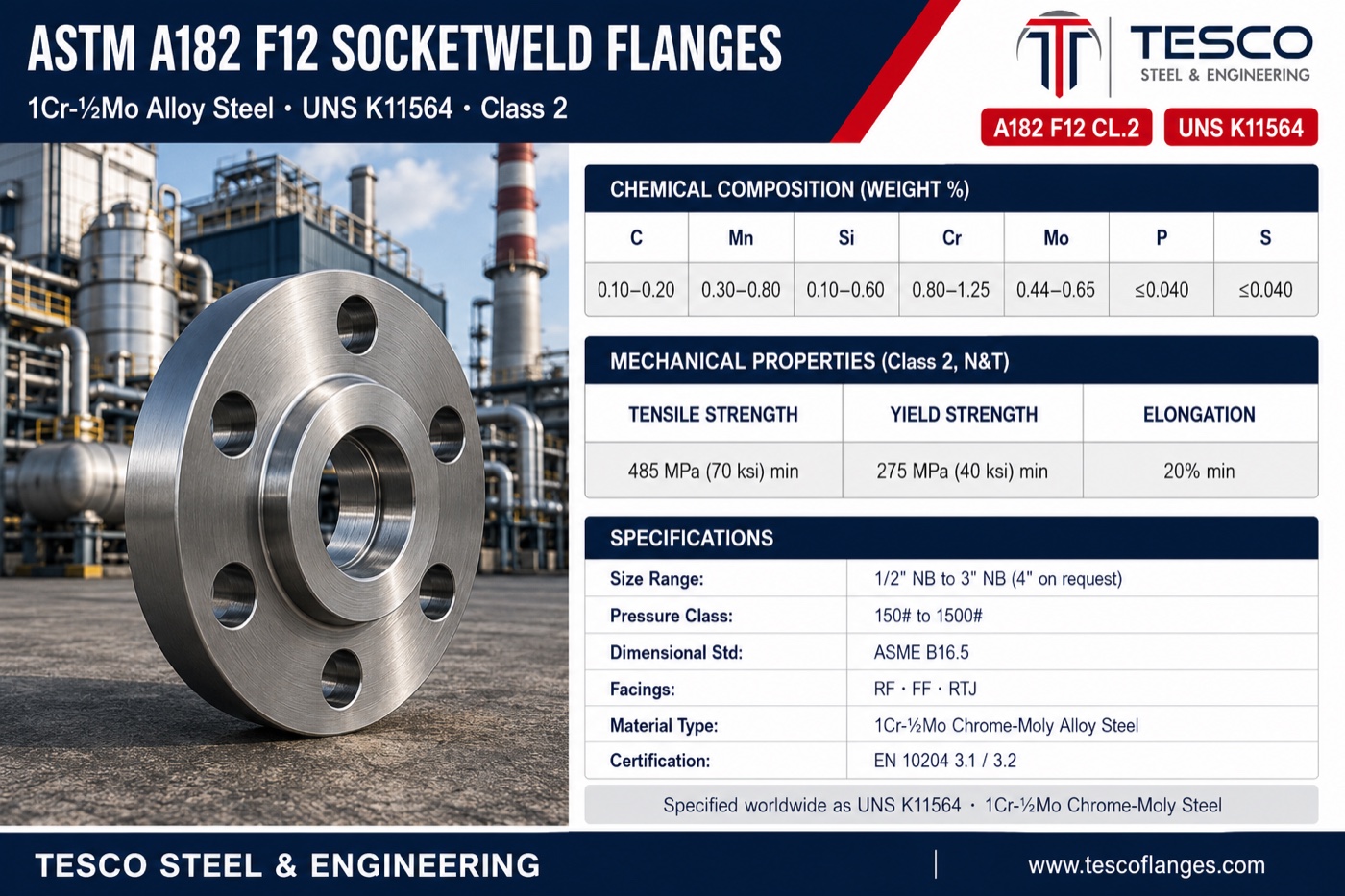

ASTM A182 F12 Socketweld Flanges — Specifications at a Glance
What is an ASTM A182 F12 Socketweld Flange?
The 1Cr-½Mo steam flange. A forged alloy steel flange (ASTM A182 F12 Class 2 / UNS K11564) with a machined socket: pipe seated square by geometry, one external fillet weld, through-bore matched to the pipe schedule. F11's leaner sibling — Cr 0.80–1.25%, ordinary silicon — with the same creep mission at 450–550 °C and the same carbon floor (0.10–0.20%), and the natural match for P12/T12 piping systems. Tensile ≥485 MPa, yield ≥275 MPa, 143–207 HB, normalized & tempered. Sized by ASME B16.5 at ½″–3″ NB, Classes 150–1500; EN 10204 3.1 on every lot.
Also searched as: A182 F12 socket weld flange, F12 Class 2 flange, F12 SWRF flange, 1Cr socket weld flange, K11564 flange — all the same product family. Related pages: the facings — SWRF / SWFF / SWRTJ — the socketweld hub, the other F12 types — blind, weld neck, slip-on — the sibling F11 socketweld, the ladder neighbours F22 / F5 / F9, and the alloy steel hub.
The piping specification — not a performance calculation
The A182 F-number mirrors the pipe's P-number so the flange is metallurgically invisible in the line: one thermal expansion, one weld procedure, one PWHT recipe, one certificate story.
What 1Cr-½Mo Buys
Decades at Steam Temperature
Cr-Mo carbides pin the microstructure against creep through the 450–550 °C band where A105 has already left the room — the same graphitization-proof logic as the whole creep family.
Carbon With a Floor
C 0.10–0.20% — a minimum, not just a cap: no carbon, no carbides, no creep strength. The one-line summary of every creep rung's chemistry.
The Family Discipline, Inherited
Preheat ~120–180 °C, PWHT by the governing code's tables — and the weld procedures qualified for a P12 line cover its F12 flanges. Matching pays at qualification time, not just on the certificate.
ASTM A182 F12 Class 2 Chemical Composition (UNS K11564)
Element
C
Mn
Si
Cr
Mo
P
S
Weight %
0.10–0.20
0.30–0.80
0.10–0.60
0.80–1.25
0.44–0.65
≤0.040
≤0.040
Beside F11 the differences are exactly two: chromium banded slightly lower, and silicon left ordinary rather than F11's deliberate scale-resisting addition. Everything else is common family property. PMI reads the Cr-Mo signature on every piece.
Mechanical Properties (Class 2, N&T)
Property
ASTM A182 F12 Class 2 Requirement
Tensile Strength
≥ 485 MPa (70 ksi)
Yield Strength (0.2%)
≥ 275 MPa (40 ksi)
Elongation
≥ 20%
Hardness
143–207 HB — tempering proof and PWHT baseline
Other Classes
Class 1 — a lower-strength, higher-weldability variant — supplied to order where a specification names it
Why It's Bought
Not ambient numbers — the creep-rupture ratings at 450–550 °C that A105 cannot offer
ASTM A182 F12 Socketweld Flanges are available in the following specifications:
Material Grade
ASTM A182 F12 Class 2 (default — an unqualified 'F12' order is supplied as Class 2); Class 1 to order; UNS K11564
Heat Treatment
Normalized and tempered; hardness verified 143–207 HB; furnace records certified
Size
1/2"NB to 3"NB per ASME B16.5; 4″ and larger to order
Class
150#, 300#, 600#, 900#, 1500# (900# shares 1500# dimensions in most sizes); 2500# on request
Facings
Raised Face (SWRF), Flat Face (SWFF), Ring Type Joint (SWRTJ) with groove per B16.20
Bore
Socket bore to pipe OD; through-bore matched to pipe schedule (Sch 40/80/160 — 80/160 dominate steam small bore)
Welding
Single external fillet per B16.5/B31.1/B31.3 with 1/16″ expansion gap; preheat ~120–180 °C, PWHT per the governing code
Service Span
Creep-rated steam and hot non-sour process duty, 450–550 °C band, in P12/T12 systems especially; hotter steam → F22, sour heat → F5/F9
Testing
Tension, chemistry and hardness per heat; PMI on every piece; socket depth and bore gauged
Certification
EN 10204 3.1 with heat-treatment records (standard) / 3.2 witnessed
Specification Notes — Getting F12 Sockets Right
Four honest notes.Match the pipe, not the habit: P11 lines take F11 flanges, P12 lines take F12 — performance is near-identical, but the certificate file and weld qualifications stay clean only when the family matches. State the class: an unqualified 'F12' order is quoted and certified Class 2. The 1/16″ gap stands — expansion against a bottomed socket cracks weld roots, and steam cycles. And thermal-fatigue drains are the known killer: attemperator and cycling drain-pot services hammer fillet roots — where your line class butt-welds them, the F12 weld neck is the right escalation.
How Our A182 F12 Socketweld Flanges Are Manufactured
1
Forging — cut billet of the spectro-verified F12 heat — the Cr-Mo windows and the carbon floor confirmed — is hot-forged into the flange blank with full heat traceability.
2
Heat treatment — normalized and tempered to the Class 2 requirement; furnace charts retained against the heat number.
3
Hardness & testing — hardness verified in the 143–207 HB band; tension and chemistry per heat; PMI reads the Cr-Mo signature on every piece.
4
Machining — faces, OD and drilling to ASME B16.5; socket counterbore and depth gauged piece by piece, through-bore matched to the ordered schedule; RF serrations, flat face or RTJ groove per B16.20.
5
Marking — laser-marked with grade, class, size, schedule and heat number.
6
Certification & packing — EN 10204 3.1 MTC with heat-treatment records (3.2 witnessed on request); packed sea-worthy.
Where ASTM A182 F12 Socketweld Flanges Are Used
Wherever the line is P12: boiler instrument and gauge connections, steam header drains and vents, soot blower supply lines, steam trap stations, attemperator and feedwater auxiliaries, turbine gland and drain systems — power stations, sugar and cement captive plants, and legacy 1Cr-½Mo systems that keep their family on the certificate file. Production below:
Alloy Steel Flanges — Machined StockThe Socket Weld Joint — Note the Expansion Gap (X)Steel Flanges — Black-Coated, Crated at Our Works
A182 F12 Socketweld Flange Dimensions
Socket weld flange dimensions are class-governed per ASME B16.5 — identical across material grades (pressure-temperature ratings follow the 1Cr material group). Full charts:
An ASTM A182 F12 socketweld flange is a forged 1Cr-½Mo alloy steel flange — UNS K11564, supplied as Class 2 unless another class is named — whose back carries a machined socket: the pipe end seats inside, self-aligned square to the face, and is secured with a single external fillet weld. F12 sits on the creep end of the chrome-moly ladder as F11's leaner sibling: the same steam-plant mission — holding strength through decades at 450-550°C where carbon steel graphitizes — with chromium at 0.80-1.25% rather than F11's 1.00-1.50%, making it the natural flange match for P12 pipe and T12 tube systems. Dimensioned to ASME B16.5 for ½" to 3" NB in Classes 150 to 1500, in raised face, flat face and ring joint facings.
F12 or F11 — what is actually different?
Two numbers, and a matching rule. Chromium: F12 runs 0.80-1.25% against F11's 1.00-1.50% — overlapping bands, with F11 biased higher. Silicon: F12 carries an ordinary 0.10-0.60% while F11 specifies a deliberate 0.50-1.00% addition for scale resistance. Strength, hardness, carbon floor and welding behaviour are for practical purposes identical at Class 2, and their creep ratings sit close through the shared service band. So the choice is rarely a performance calculation: it is inherited from the piping specification. Systems built in P11/T11 take F11 flanges; systems built in P12/T12 take F12 — same family on the certificate, same PWHT behaviour, no odd member in the line. Both ship from our works; the enquiry's pipe spec decides.
Why match F12 flanges to P12/T12 piping?
Because alloy families are systems, not single products. The 1Cr-½Mo chemistry exists across the product forms — T12 tube, P12 pipe, F12 forgings, and matching plate and fittings grades — and a line built from them shares one thermal expansion, one welding procedure qualification, one PWHT recipe and one story for the inspector. Drop an off-family flange into that line and every one of those becomes a special case. That is the whole logic of the A182 F-number system: the F-grade mirrors the P-grade so the flange is metallurgically invisible in the line. Our certificates carry the grade and class explicitly so the matching is auditable, not assumed.
What is the chemical composition of ASTM A182 F12 Class 2?
Carbon 0.10-0.20% (a deliberate range with a minimum — creep strength is carbide strength), manganese 0.30-0.80%, silicon 0.10-0.60%, chromium 0.80-1.25%, molybdenum 0.44-0.65%, phosphorus ≤0.040%, sulphur ≤0.040%. Read it beside F11 and the differences are exactly two: chromium banded slightly lower, and silicon left as an ordinary deoxidation residue rather than F11's deliberate scale-resisting addition. Everything else — the carbon floor, the Mo window, the P/S ceilings — is common family property. Chemistry is verified per heat and travels on the EN 10204 3.1 MTC.
Why does F12's carbon have a minimum?
The same reason as every creep rung: creep strength is carbide strength. F12's job is to resist slow deformation over years at steam temperatures, and the mechanism is a dispersion of chromium-molybdenum carbides pinning the microstructure — no carbon, no carbides, no creep resistance. Class 2 therefore specifies carbon as a range with a floor, 0.10-0.20%: the mill must prove there is enough carbon to form the strengthening phase, not just little enough to weld. It is the mirror image of the corrosion-driven grades' low-carbon logic, and a datasheet printing F12 carbon as '≤0.20' has lost the floor — and the point.
What are the mechanical properties of A182 F12 socketweld flanges?
In the Class 2 normalized-and-tempered condition A182 requires tensile strength 485 MPa (70 ksi) minimum, yield strength 275 MPa (40 ksi) minimum, elongation 20% minimum, with hardness controlled at 143-207 HB — numerically identical to F11 Class 2, which is part of why the two are chosen by pipe-spec matching rather than by strength. The room-temperature figures deliberately match carbon steel's: F12 is bought for its creep-rupture ratings at 450-550°C, where the allowable-stress tables leave A105 behind. A lower-strength, higher-weldability Class 1 exists and is supplied to order where a specification names it; an unqualified 'F12' order means Class 2.
How is an F12 socketweld flange welded — preheat and PWHT?
With the low-chrome family's moderate discipline. Joint geometry is standard socket weld practice: pipe bottomed, withdrawn 1/16" (1.6 mm) per the code so thermal expansion cannot crack the weld root, single external fillet sized to B16.5/B31.1/B31.3 rules. F12's hardenability is modest: typical preheat runs around 120-180°C, and PWHT follows the governing code's thickness and service rules — B31.1's tables for power-plant work, B31.3's for process. The welding procedures qualified for a P12 line cover its F12 flanges — the matching logic again. Our flanges arrive normalized and tempered with records; the joint's pedigree is the fabricator's half of the contract.
F12 or F22 — when does the duty move up?
When the steam conditions outgrow the 1Cr window, via the allowable-stress tables. F12 and F11 carry the classic subcritical boiler and steam-line band economically; F22 (2¼Cr-1Mo) extends it with higher creep-rupture strength at the hot end — the standard grade for high-energy steam headers and hydrogen-unit auxiliaries. The crossover sits where your design code's stress tables and the line's design temperature put it, commonly in the 540-565°C region for long-life duty. And if the stream is sour rather than merely hot, the ladder's corrosion half — F5 and F9 — answers a different question entirely; our pages for each rung carry the full story.
What facings are A182 F12 socketweld flanges made with?
All three, each with its own page on this site: raised face (SWRF) — the default, with graphite-filled spiral wound gaskets for steam duty — flat face (SWFF) for the rare lined or brittle mate, and ring type joint (SWRTJ) for high-pressure steam and feedwater circuits in Classes 900-1500. The socket, the welding practice and the schedule-matched bore are identical across the three; only the gasket face changes, and the piping class decides which you order.
What sizes and pressure classes do F12 socketweld flanges come in?
ASME B16.5 standardises socket weld flanges from ½" to 3" NB in Classes 150, 300, 600, 900 and 1500 — Class 900 sharing Class 1500 dimensions in most small-bore sizes — with 4" and Class 2500 made to order. Steam-plant duty spreads F12 sockets across Classes 300-1500, with boiler-proximate connections at the high end. As with every socket flange, put the pipe schedule on the enquiry — Sch 80 and 160 dominate high-pressure steam small bore — so the through-bore matches the pipe ID. B16.5 pressure-temperature ratings for the 1Cr material group govern the limits; our quotations state them per class.
When should I not use a socket weld flange?
The standard socket weld limits apply, with steam's own emphasis. As always: the socket gap is a crevice (corrosion-sensitive stagnant duty prefers butt welds), fillet welds cannot be radiographed (mandatory-RT and lethal-service classes escalate to weld necks), and hygienic duty excludes sockets. The steam-specific caution: thermal-fatigue duty — spray-water attemperator drains, cycling drain pots, anything alternating between steam and condensate — hammers the fillet root, and cracked socket welds in drain lines are a documented power-plant failure mode; many utilities butt-weld those specific services as policy. Where your line class says so, our F12 weld neck page has the matching flange.
Where are F12 socketweld flanges used?
Across the steam plant's small bore, wherever the line itself is P12 or equivalent 1Cr-½Mo pipe: boiler instrument and gauge connections, steam header drains and vents, soot blower supply lines, steam trap stations, attemperator and feedwater auxiliaries, and turbine gland and drain systems — in power stations, sugar and cement captive plants, and the hot non-sour process services that sit above carbon steel's 425°C ceiling. Legacy plants are a particular home: decades of installed P12/T12 systems keep specifying F12 closures so the line stays one family on the certificate file.
What details are needed to get an accurate F12 socketweld flange quotation?
Six elements plus commercial terms: (1) size — ½" to 3" NB; (2) pressure class — 150 to 1500; (3) facing — SWRF, SWFF or SWRTJ with ring number; (4) the pipe schedule — Sch 40, 80 or 160, so the through-bore matches the pipe ID; (5) grade detail — F12 Class 2 (the default) or Class 1 where the specification names it, with any hardness requirements; (6) certification — EN 10204 3.1 with heat-treatment records (our standard) or 3.2 witnessed, PMI as applicable. Add quantity and destination and we return price, weight and delivery — normally within 24 hours.
Who manufactures ASTM A182 F12 socketweld flanges in India?
Tesco Steel & Engineering is an ISO 9001:2015 certified flange manufacturer based in Mumbai, India, producing ASTM A182 F12 Class 2 socket weld flanges from ½" to 3" NB (larger to order) in Classes 150-1500 — each forged from certified heats, normalized and tempered with furnace records, hardness-verified in the 143-207 HB band, machined with gauged socket depth and schedule-matched bore, PMI-checked and laser-marked with grade, class, size, schedule and heat number. Supplied with EN 10204 3.1/3.2 certification, alongside the full chrome-moly ladder — F1, F11, F22, F5, F9 and F91 — and the complete socket weld range in carbon, stainless and nickel alloys. Exported to more than 50 countries.
