JIS 30K WELD NECK FLANGE

JIS 30K Weld Neck Flanges | #JIS 30K Sch 40 Weld Neck Flange | JIS #30K WNRF Flange | WNFF JIS 30K | JIS 30K Weldneck Flange | JIS Weldneck Flange | #JIS 30K Weldneck Dimensions | JIS 30K weldneck flange schedule chart

Ask for Quote

JIS Weld Neck Flange Manufacturer Supplier Distributors

JIS 30 Kg/cm² Weld Neck Flanges are generally used in high pressure applications, where hot or cold temperatures exist. These steel JIS 30 Kg/cm² weld neck flanges are circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. These JIS weld neck flanges reduce the turbulence and erosion inside the pipeline because the bores of both pipe and flange match. This also reduces high stress concentration at the base of the hub of the JIS 30 weld neck pipe flange. Such weld neck are favoured in critical applications. The inside diameter of a JIS 30Kg/cm² weld neck flange is machined to match the inside diameter of the pipe. Tesco Steel & Engineering manufacture a wide range of high quality JIS 30 Kg/cm² Weld Neck Flanges in India.

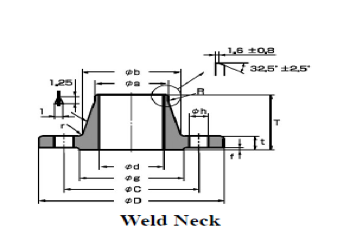

JIS 30 KG/CM² WELD NECK FLANGE DIMENSIONS

JIS 30 KG/CM² WELD NECK FLANGE Dimensions

Pipe										Weld	Neck
inch	Mm	Pipe	D	t	f	g	C	Holes	h	d	a	b	T	R	r
3/8	10	17.3	110	16	1	52	75	4	19	-	-	-	-	-	-
1/2	15	21.7	115	18	1	55	80	4	19	16.1	21.7	40	45	20	6
3/4	20	27.2	120	18	1	60	85	4	19	21.4	27.2	44	45	20	6
1	25	34	130	20	1	70	95	4	19	27.2	34	52	48	20	6
1-1/4	32	42.7	140	22	2	80	105	4	19	35.5	42.7	62	52	30	6
1-1/2	40	48.6	160	22	2	90	120	4	23	41.2	48.6	70	54	30	6
2	50	60.5	165	22	2	105	130	8	19	52.7	60.5	84	57	30	8
2-1/2	65	76.3	200	26	2	130	160	8	23	65.9	76.3	104	69	30	8
3	80	89.1	210	28	2	140	170	8	23	78.1	89.1	118	73	30	8
3-1/2	90	101.6	230	30	2	150	185	8	25	90.2	101.6	130	74	30	8
4	100	114.3	240	32	2	160	195	8	25	102.3	114.3	142	76	30	8
5	125	139.8	275	36	2	195	230	8	25	126.6	139.8	172	86	50	10
6	150	165.2	325	38	2	235	275	12	27	151	165.2	202	95	50	10
8	200	216.3	370	42	2	280	320	12	27	199.9	216.3	254	102	50	10
10	250	267.4	450	48	2	345	390	12	33	248.8	267.4	312	118	50	12
12	300	318.5	515	52	3	405	450	16	33	297.9	318.5	366	127	50	15
14	350	355.6	560	54	3	450	495	16	33	333.4	355.6	406	134	80	15
16	400	406.4	630	60	3	510	560	16	39	381	406.4	462	149	80	20

Advantages of using JIS 30K Weldneck Flanges

Weldneck flanges offer several advantages over other types of flanges, such as slip-on flanges. Here are some of the benefits of using weldneck flanges:

Superior Strength
Weldneck flanges have a long tapered hub that provides additional strength to the connection between the pipe and the flange. The welding process creates a permanent and durable bond that can withstand high pressure and extreme temperatures.

Versatility in Accommodating Different Pipe Sizes
Weldneck flanges are available in various sizes, making them suitable for use with pipes of different diameters. The flanges can also be used with pipes of different materials, such as stainless steel, carbon steel, and alloy steel.

Secure and Leak-Free Connection
The welding process creates a strong and leak-free connection between the pipe and the flange. This ensures that the piping system is safe and efficient, reducing the risk of leaks and other safety hazards.

Easy to Install and Maintain
Weldneck flanges are relatively easy to install, and the welding process can be completed quickly. The flanges are also easy to maintain, requiring only periodic inspection and maintenance to ensure that they are in good working condition.

Applications of JIS 30K Weldneck Flange

Weldneck flanges are used in various industrial piping applications, including:

Oil and Gas Industry
Weldneck flanges are commonly used in oil and gas piping systems, where they are used to transport crude oil, natural gas, and other petroleum products.

Chemical Processing Industry
Weldneck flanges are used in chemical processing plants to transport various chemicals and materials.

Water Treatment Industry
Weldneck flanges are used in water treatment plants to transport water and other fluids.

Power Generation Industry
Weldneck flanges are used in power generation plants to transport steam, gas, and other fluids.

Price List of Weldneck Flanges

Prices for JIS 30K Weldneck Flanges are very affordable.

Please click on the "Ask for Quote" button or click here to request the updated price list and ready stock information along with your requirement.
TESCO STEEL & ENGINEERING maintains a stock of all standard items and can export them at the best price.
