JIS 40K WELD NECK FLANGES

JIS 40K Weld Neck Flanges | #JIS 40K Sch 40 Weld Neck Flange | JIS #40K WNRF Flange | WNFF JIS 40K | JIS 40K Weldneck Flange | JIS Weldneck Flange | #JIS 40K Weldneck Dimensions | JIS 40K weldneck flange schedule chart

Ask for Quote

JIS Weld Neck Flange Manufacturer Supplier Distributors

JIS 40 Kg/cm² Weld Neck Flanges are generally used in high pressure applications, where hot or cold temperatures exist. These steel JIS 40 Kg/cm² weld neck flanges are circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. These JIS weld neck flanges reduce the turbulence and erosion inside the pipeline because the bores of both pipe and flange match. This also reduces high stress concentration at the base of the hub of the JIS 30 weld neck pipe flange. Such weld neck are favoured in critical applications. The inside diameter of a JIS 40Kg/cm² weld neck flange is machined to match the inside diameter of the pipe. Tesco Steel & Engineering manufacture a wide range of high quality JIS 40 Kg/cm² Weld Neck Flanges in India.

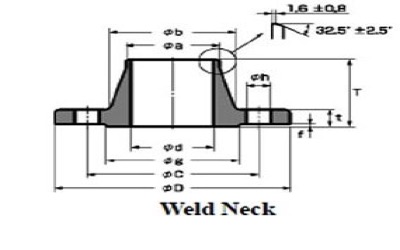

JIS 40 KG/CM² WELD NECK FLANGE DIMENSIONS

JIS 40 KG/CM² WELD NECK FLANGE Dimensions

Pipe											Weld Neck
inch	mm	Pipe	D	do	t	f	g	C	Holes	h	d	a	b	T
3/8	10	17.3	110	17.8	18	1	52	75	4	19	-	17.3	38	53
1/2	15	21.7	115	22.2	20	1	55	80	4	19	15.8	21.7	40	53
3/4	20	27.2	120	27.7	20	1	60	85	4	19	21.1	27.2	45	58
1	25	34.0	130	34.5	22	1	70	95	4	19	26.8	34.0	54	63
1-1/4	32	42.7	140	43.2	24	2	80	105	4	19	35.1	42.7	62	69
1-1/2	40	48.6	160	49.1	24	2	90	120	4	23	40.7	48.6	72	72
2	50	60.5	165	61.1	26	2	105	130	8	19	52.2	60.5	88	75
2-1/2	65	76.3	200	77.1	30	2	130	160	8	23	65.3	76.3	108	81
3	80	89.1	210	90.0	32	2	140	170	8	23	76.4	89.1	119	85
3-1/2	90	101.6	230	102.6	34	2	150	185	8	25	89.5	101.6	130	88
4	100	114.3	250	115.4	36	2	165	205	8	25	101.5	114.3	146	104
5	125	139.8	300	141.2	40	2	200	250	8	27	-	-	-	-
6	150	165.2	355	166.6	44	2	240	295	12	33	150.0	165.2	215	120
8	200	216.3	405	218.0	50	2	290	345	12	33	198.7	216.3	270	135
10	250	267.4	475	269.5	56	2	355	410	12	33	247.5	267.4	333	154
12	300	318.5	540	321.0	60	2	410	470	16	39	296.4	318.5	400	159
14	350	355.6	585	358.1	64	3	455	515	16	39	331.8	355.6	432	168
16	400	406.4	645	409.0	70	3	515	570	16	39	379.1	406.4	466	181

Advantages of using JIS 40K Weldneck Flanges

Weldneck flanges offer several advantages over other types of flanges, such as slip-on flanges. Here are some of the benefits of using weldneck flanges:

Superior Strength
Weldneck flanges have a long tapered hub that provides additional strength to the connection between the pipe and the flange. The welding process creates a permanent and durable bond that can withstand high pressure and extreme temperatures.

Versatility in Accommodating Different Pipe Sizes
Weldneck flanges are available in various sizes, making them suitable for use with pipes of different diameters. The flanges can also be used with pipes of different materials, such as stainless steel, carbon steel, and alloy steel.

Secure and Leak-Free Connection
The welding process creates a strong and leak-free connection between the pipe and the flange. This ensures that the piping system is safe and efficient, reducing the risk of leaks and other safety hazards.

Easy to Install and Maintain
Weldneck flanges are relatively easy to install, and the welding process can be completed quickly. The flanges are also easy to maintain, requiring only periodic inspection and maintenance to ensure that they are in good working condition.

Applications of JIS 40K Weldneck Flange

Weldneck flanges are used in various industrial piping applications, including:

Oil and Gas Industry
Weldneck flanges are commonly used in oil and gas piping systems, where they are used to transport crude oil, natural gas, and other petroleum products.

Chemical Processing Industry
Weldneck flanges are used in chemical processing plants to transport various chemicals and materials.

Water Treatment Industry
Weldneck flanges are used in water treatment plants to transport water and other fluids.

Power Generation Industry
Weldneck flanges are used in power generation plants to transport steam, gas, and other fluids.

Price List of Weldneck Flanges

Prices for JIS 40K Weldneck Flanges are very affordable.

Please click on the "Ask for Quote" button or click here to request the updated price list and ready stock information along with your requirement.
TESCO STEEL & ENGINEERING maintains a stock of all standard items and can export them at the best price.
