API 6A TYPE 6BX 2000 PSI WELD NECK FLANGES

API 6A TYPE 6BX 2000 PSI Weld Neck Flanges | API 6A TYPE 6BX #2000 PSI Sch 40 Weld Neck Flange | API 6A #2000 PSI WNRF Flange | WNFF API #2000 PSI | API #2000 PSI Weldneck Flange | API 6A 2000 PSI Weldneck Flange | #API 6A TYPE 6BX 2000 PSI Weldneck Dimensions | API 6A TYPE 6BX 2000 PSI weldneck flange schedule chart

Ask for Quote

API 6A Type 6B Weld Neck Flange Manufacturer Supplier Distributors

API 6A Type 6BX 2000 PSI Weld Neck Flanges are generally used in high pressure applications, where hot or cold temperatures exist. These steel API 6A weld neck flanges are circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. These API 6A Type 6BX weld neck flanges reduce the turbulence and erosion inside the pipeline because the bores of both pipe and flange match. This also reduces high stress concentration at the base of the hub of the API weld neck pipe flange. Such weld neck are favoured in critical applications. The inside diameter of a # API 6A 2000 PSI weld neck flange is machined to match the inside diameter of the pipe. Tesco Steel & Engineering manufacture a wide range of high quality API 6A Type 6BX 2000 PSI Weld Neck Flanges in India. We offer these API flanges in ASME/ANSI/DIN standards.

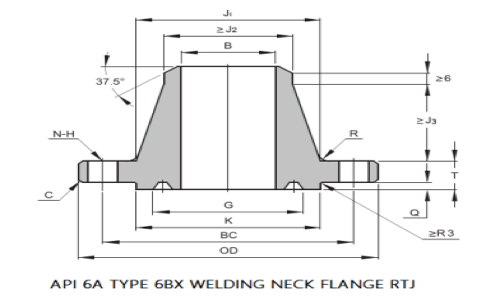

API 6A Type 6BX 2000 PSI Weld Neck Flange Dimensions

Size-(inches)	B	OD	C	Q	G	K	T	J1	J2	J3	R	BC	N	H	Ring Number BX


26 3/4"	680.2	1040	6	21.43	768.33	805	126.3	835.8	743	185.7	16	952.5	20	48	167
30"	762.8	1120	6	22.62	862.3	908	134.2	931.9	833	196.9	16	1039.8	32	45	303

Advantages of using API 6A Type 6BX 2000 PSI Weldneck Flanges

Weldneck flanges offer several advantages over other types of flanges, such as slip-on flanges. Here are some of the benefits of using weldneck flanges:

Superior Strength
Weldneck flanges have a long tapered hub that provides additional strength to the connection between the pipe and the flange. The welding process creates a permanent and durable bond that can withstand high pressure and extreme temperatures.

Versatility in Accommodating Different Pipe Sizes
Weldneck flanges are available in various sizes, making them suitable for use with pipes of different diameters. The flanges can also be used with pipes of different materials, such as stainless steel, carbon steel, and alloy steel.

Secure and Leak-Free Connection
The welding process creates a strong and leak-free connection between the pipe and the flange. This ensures that the piping system is safe and efficient, reducing the risk of leaks and other safety hazards.

Easy to Install and Maintain
Weldneck flanges are relatively easy to install, and the welding process can be completed quickly. The flanges are also easy to maintain, requiring only periodic inspection and maintenance to ensure that they are in good working condition.

Applications of API 6A Type 6BX 2000 PSI Weldneck Flange

Weldneck flanges are used in various industrial piping applications, including:

Oil and Gas Industry
Weldneck flanges are commonly used in oil and gas piping systems, where they are used to transport crude oil, natural gas, and other petroleum products.

Chemical Processing Industry
Weldneck flanges are used in chemical processing plants to transport various chemicals and materials.

Water Treatment Industry
Weldneck flanges are used in water treatment plants to transport water and other fluids.

Power Generation Industry
Weldneck flanges are used in power generation plants to transport steam, gas, and other fluids.

Price List of Weldneck Flanges

Prices for API 6A Type 6BX 2000 PSI Weldneck Flanges are very affordable.

Please click on the "Ask for Quote" button or click here to request the updated price list and ready stock information along with your requirement.
TESCO STEEL & ENGINEERING maintains a stock of all standard items and can export them at the best price.
