PN 400 EN 1092-1 Type 11 Weld Neck Flanges are generally used in high pressure applications, where hot or cold temperatures exist. These steel PN 400 EN 1092-1 Type 11 weld neck flanges are circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. These pn 400 en 1092-1 weld neck flanges reduce the turbulence and erosion inside the pipeline because the bores of both pipe and flange match. This also reduces high stress concentration at the base of the hub of the PN EN 1092-1 weld neck pipe flange. Such weld neck are favoured in critical applications. The inside diameter of a #400 Type 11 weld neck flange is machined to match the inside diameter of the pipe. Tesco Steel & Engineering manufacture a wide range of high quality PN 400 EN 1092-1 Type 11 Weld Neck Flanges in India.

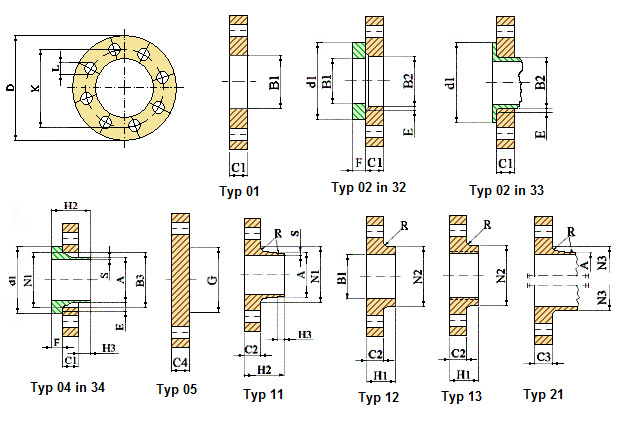

| D: Outside Diameter K: Diameter of Bolt Circle L: Diameter of Bolt Hole |
A: Outside Diameter of Neck E: Chamfer F: Collar thickness |
G max: Diameter of Shoulders R: Corner Radius N: Neck Diameter S: Neck Thickness (Preferred value) |
| DN | Mating dimensions | A | Flange Thickness | Length | Neck Diameters |
R1 | S | ||||||||||||||||
| D | K | L | Bolting | ||||||||||||||||||||
| No | Size | C2 | C3 | H2 | H3 | N1 | N3 | ||||||||||||||||
| Flange type | |||||||||||||||||||||||
| 11, 21 | 11 21* |
11 | 21 | 11 | 11 | 11 | 21 | 11 | 21 | 11 | |||||||||||||
| 10 | 125 | 85 | 18 | 4 | M16 | 17.2 | 28 | 28 | 65 | 8 | 48 | 48 | 4 | 4 | 3.6 | ||||||||
| 15 | 145 | 100 | 22 | 4 | M20 | 26.9 | 30 | 30 | 68 | 8 | 56 | 57 | 4 | 4 | 5.0 | ||||||||
| 25 | 180 | 130 | 26 | 4 | M24 | 42.4 | 38 | 38 | 90 | 10 | 82 | 81 | 4 | 5 | 7.1 | ||||||||
| 40 | 220 | 165 | 30 | 4 | M27 | 60.3 | 48 | 48 | 110 | 12 | 106 | 105 | 6 | 5 | 10.0 | ||||||||
| 50 | 235 | 180 | 30 | 8 | M27 | 76.1 | 52 | 52 | 120 | 15 | 120 | 120 | 6 | 6 | 12.5 | ||||||||
| 65 | 290 | 225 | 33 | 8 | M30 | 101.6 | 64 | 64 | 135 | 18 | 158 | 158 | 6 | 6 | 16.0 | ||||||||
| 80 | 305 | 240 | 33 | 8 | M30 | 114.3 | 68 | 68 | 150 | 20 | 174 | 174 | 8 | 8 | 17.5 | ||||||||
| 100 | 370 | 295 | 39 | 8 | M36 | 139.7 | 80 | 80 | 175 | 25 | 216 | 216 | 8 | 8 | 22.2 | ||||||||
| 125 | 415 | 340 | 39 | 12 | M36 | 193.7 | 92 | 92 | 200 | 30 | 258 | 259 | 8 | 10 | 30.0 | ||||||||
| 150 | 475 | 390 | 42 | 12 | M39 | 219.1 | 105 | 105 | 225 | 35 | 302 | 302 | 10 | 10 | 35.0 | ||||||||
| 200 | 585 | 490 | 48 | 16 | M45 | 273.0 | 130 | 130 | 280 | 40 | 388 | 388 | 10 | 10 | 40.0 | ||||||||
* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
