The Role of tube sheets in heat exchangers

---

Tube sheets are an integral component of heat exchangers. They serve as a barrier between the fluid inside the tubes and the fluid outside the tubes, ensuring that the two fluids do not mix. Tube sheets are essentially thick, flat plates with holes drilled through them to accommodate the tubes. These holes are precisely positioned to allow for optimal heat transfer between the two fluids.

When the fluids flow through the heat exchanger, one fluid enters the tubes while the other flows over the tubes on the shell side. The tube sheet acts as a support for the tubes, holding them in place and preventing them from sagging or vibrating excessively. It also provides a leak-proof seal between the tube and the tube sheet, preventing any fluid from bypassing the tubes.

In addition to their structural role, tube sheets also play a critical role in the overall efficiency of the heat exchanger. The design and material of the tube sheet can greatly impact the heat transfer rate, pressure drop, and overall performance of the heat exchanger.

Materials used for tube sheets

---

Tube sheets are subjected to high temperatures, pressures, and corrosive environments, making the selection of the right material crucial. The choice of material depends on several factors, including the operating conditions, fluid properties, and cost considerations. Some common materials used for tube sheets include:

Carbon steel
Carbon steel is a popular choice for tube sheets due to its affordability and good mechanical properties. However, it is susceptible to corrosion in certain environments and may require additional corrosion protection.

Stainless steel
Stainless steel is widely used in tube sheets due to its excellent corrosion resistance. It is particularly suitable for heat exchangers handling corrosive fluids or operating at high temperatures. Stainless steel tube sheets are available in various grades, each offering different levels of corrosion resistance and mechanical properties.

Copper
Copper tube sheets are commonly used in heat exchangers where high thermal conductivity is required. Copper has excellent heat transfer properties and is resistant to corrosion in many environments. However, it is relatively expensive compared to other materials.

Titanium
Titanium tube sheets are often used in heat exchangers that handle highly corrosive fluids or operate in aggressive environments. Titanium offers exceptional corrosion resistance and excellent strength-to-weight ratio. However, it is one of the most expensive materials for tube sheets.

Aluminum
Aluminum tube sheets are lightweight and offer good corrosion resistance. They are commonly used in air-cooled heat exchangers or applications where weight is a critical factor. However, aluminum is not suitable for heat exchangers operating at high temperatures or handling corrosive fluids.

To ensure the best material selection for your tube sheet, it is essential to consider the specific operating conditions, fluid properties, and budget constraints.

Types of Tube sheets

---

Fixed tube sheet heat exchangers
The most'standard' type of tube sheet is probably fixed tube sheets. When there aren't any difficult or harsh working circumstances, they are utilised. It speaks of elongated tubes that are straight and joined to the shell at both ends.

Double tube sheet heat exchangers
When it's crucial that the materials in the heat exchanger stay separate, double tube sheets are used. By creating a space between the two tube sheets so that the leaky substance can exit the heat exchanger, they avoid cross-contamination. To sound an alarm, this is combined with a detector in the leaking path.
In a single tube sheet design, a tiny degree of fluid contamination between the fluids on the tube side and those on the shell side may occur at the tube-to-tube join at the sheet. Heat exchangers that must prevent contamination instead utilise a twin tube sheet because there is no known joining technique that totally removes the possibility of contamination.
As the name suggests, a double tube sheet consists of two tube sheets. Instead of leaking into the shell, where the shell-side fluid is confined, the tube-side fluid gathers between the two tube sheets in the case of a leak. This could be essential in a wide variety of operations.
In some nations, using double tube sheets for heat exchangers in power plant condensers is required by law. It stops the condensate from becoming contaminated by the coolant, which frequently has a lot of contaminants. Otherwise, dangerous chemical reactions might occur, endangering the plant's security.
Tesco Steels has experience designing and manufacturing heat exchangers for use within power generation industries, including in renewable energy, and heat exchangers for defence.

Floating tube sheets
One end of floating tube sheets, also known as a floating head, is attached to the shell, while the other 'floats' freely.
In situations when a product experiences rapid temperature variations, this type of heat exchanger tube sheet is crucial. This can be a heat exchanger that alternates between hot and cold media in a cycle.
The tubes may expand or contract as a result of temperature variations. The pressure on the metal could result in leaks or damage where both ends are fastened. A floating design allows for shrinkage and expansion, which reduces stress on the joints.
In companies that process compounds that leave silt or other buildup, it is also beneficial. The tube bundle can be taken out of a floating tube sheet design for cleaning or inspection.

Tube sheet fabrication techniques

---

The fabrication of tube sheets involves several processes to ensure their structural integrity, dimensional accuracy, and compatibility with the tubes. The choice of fabrication technique depends on various factors, including the material, design requirements, and budget considerations. Here are some common tube sheet fabrication techniques:

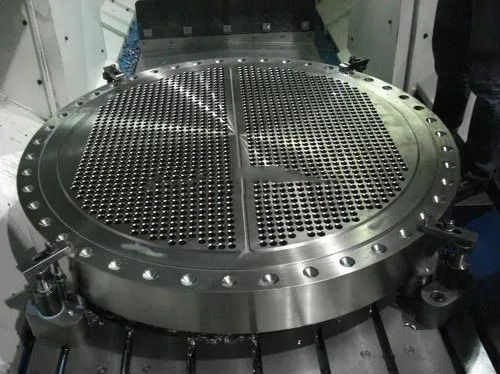

Drilling
Drilling is the most common method used to create the holes in the tube sheet. The holes must be accurately positioned to ensure proper tube alignment and maximize heat transfer efficiency. Specialized drilling machines or CNC equipment are typically used to achieve precise hole placement.

Expanding
Expanding is the process of mechanically joining the tubes to the tube sheet. It involves inserting the tubes into the holes and expanding them using hydraulic or mechanical force. This creates a tight, leak-proof seal between the tube and the tube sheet. Expanding is commonly used for carbon steel and stainless steel tube sheets.

Welding
Welding is often used to attach the tubes to the tube sheet in applications where the operating conditions are more demanding. Welding provides a strong, durable connection between the tubes and the tube sheet. However, it requires skilled welders and careful consideration of the material compatibility and heat-affected zone.

Rolling
Rolling is a fabrication technique used for U-tube bundle tube sheets. It involves bending the tubes into a U shape and then attaching them to the tube sheet using rolling or expansion methods. Rolling ensures a secure connection between the U-shaped tubes and the tube sheet, preventing leakage and ensuring proper heat transfer.

The choice of fabrication technique depends on various factors such as the design requirements, material properties, and budget constraints. It is crucial to work with experienced fabricators or manufacturers to ensure the highest quality and reliability of the tube sheets.

Tube sheet design considerations

---

The design of the tube sheet is critical for the overall performance and reliability of the heat exchanger. Several design considerations must be taken into account to ensure optimal heat transfer, structural integrity, and compatibility with the operating conditions. Here are some key design considerations for tube sheets:

Tube layout
The arrangement of the tubes in the tube sheet plays a crucial role in heat transfer efficiency. The tube layout should be carefully designed to maximize the surface area available for heat transfer while ensuring proper fluid distribution and minimal pressure drop.

Tube pitch
The tube pitch refers to the distance between the centerlines of adjacent tubes. It affects the ease of fabrication, fluid flow distribution, and heat transfer performance. The tube pitch should be selected based on the specific application requirements and the available space.

Tube sheet thickness
The thickness of the tube sheet depends on various factors, including the tube diameter, operating pressure, and material properties. The tube sheet should be thick enough to provide sufficient strength and rigidity while minimizing weight and cost.

Baffle design
Baffles are plates or rods installed inside the shell of the heat exchanger to direct the flow of fluid and enhance heat transfer. The design and positioning of the baffles can significantly affect the fluid flow patterns, pressure drop, and heat transfer efficiency. Proper baffle design should be considered in conjunction with the tube sheet design.

Expansion joint
In heat exchangers where differential thermal expansion is expected between the tubes and the shell, an expansion joint may be required. The expansion joint allows for the movement of the tube sheet and tubes without causing excessive stress or damage.
By carefully considering these design factors, engineers can optimize the performance, reliability, and longevity of the heat exchanger.

Tube sheet inspection and testing methods

---

Regular inspection and testing of the tube sheets are essential to ensure their integrity, identify any potential issues, and prevent costly failures. Several inspection and testing methods can be used to assess the condition of the tube sheets. Here are some common methods:

Visual inspection
Visual inspection involves a thorough examination of the tube sheet for any visible signs of damage, corrosion, or leaks. It is a non-destructive method that can be performed on-site or during maintenance shutdowns. Visual inspection helps detect any surface irregularities or signs of deterioration that may require further investigation.

Ultrasonic testing
Ultrasonic testing uses high-frequency sound waves to detect defects or thickness variations in the tube sheet. It can identify issues such as corrosion, erosion, cracks, or delamination that may not be visible to the naked eye. Ultrasonic testing provides accurate measurements of the tube sheet thickness and detects any potential weaknesses.

Eddy current testing
Eddy current testing is a non-destructive method that uses electromagnetic induction to detect surface and near-surface defects in the tube sheet. It can identify issues such as pitting, cracking, or material degradation. Eddy current testing is particularly effective for tube sheets made of conductive materials such as stainless steel or copper.

Dye penetrant testing
Dye penetrant testing is a widely used method for detecting surface cracks or defects in the tube sheet. It involves applying a dye to the surface, allowing it to penetrate any surface cracks, and then removing the excess dye. The remaining dye highlights any defects, allowing for easy visual detection.

Pressure testing
Pressure testing involves pressurizing the heat exchanger and monitoring for any pressure drop or leaks. It can help identify any issues with the tube sheet integrity, such as loose tubes, faulty seals, or cracks. Pressure testing is typically performed during the initial installation or after major repairs.
Regular inspection and testing of the tube sheets are critical to ensure the safe and efficient operation of the heat exchanger. Any detected issues should be addressed promptly to prevent further damage or failures.
